SM16150CD2, SM1620CD2 Schottky Barrier Rectifiers

Eris

Description

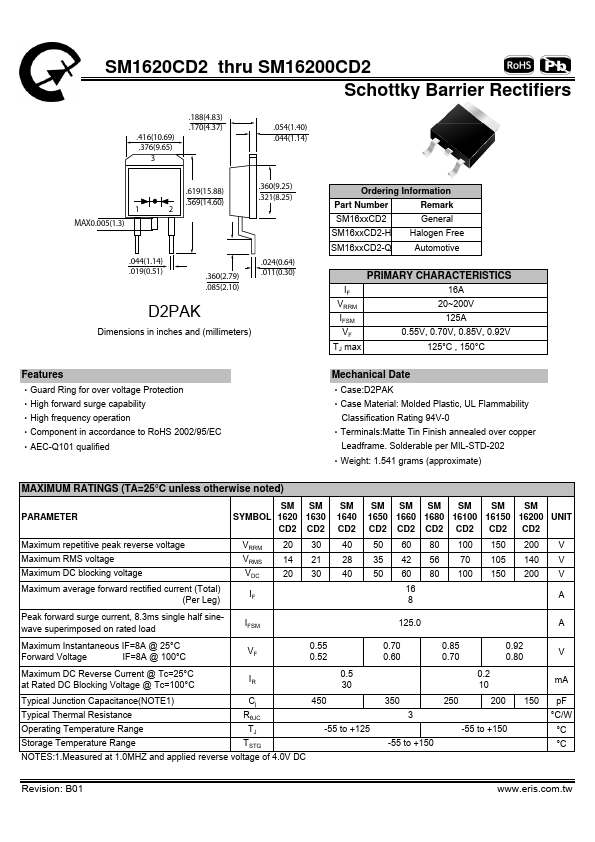

SM1620CD2 thru SM16200CD2 Schottky Barrier Rectifiers .416(10.69) .376(9.65) 3 .188(4.83) .170(4.37) .054(1.40) .044(1.14) 1 MAX0.005(1.3) .619(1.

📥 Download Datasheet

SM16150CD2 Datasheet Preview — This datasheet PDF includes multiple part numbers: SM16150CD2, SM1620CD2. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SM16150CD2, SM1620CD2
Manufacturer: Eris
File Size: 209.82 KB
Datasheet: SM1620CD2-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM16150CD2, SM1620CD2.
Please refer to the document for exact specifications by model.

Features

* ‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SM16xxCD2 Remark General SM16xxCD2-H Halogen Free SM16xxCD2-Q Automotive PRIMARY CHARACTERISTICS I
