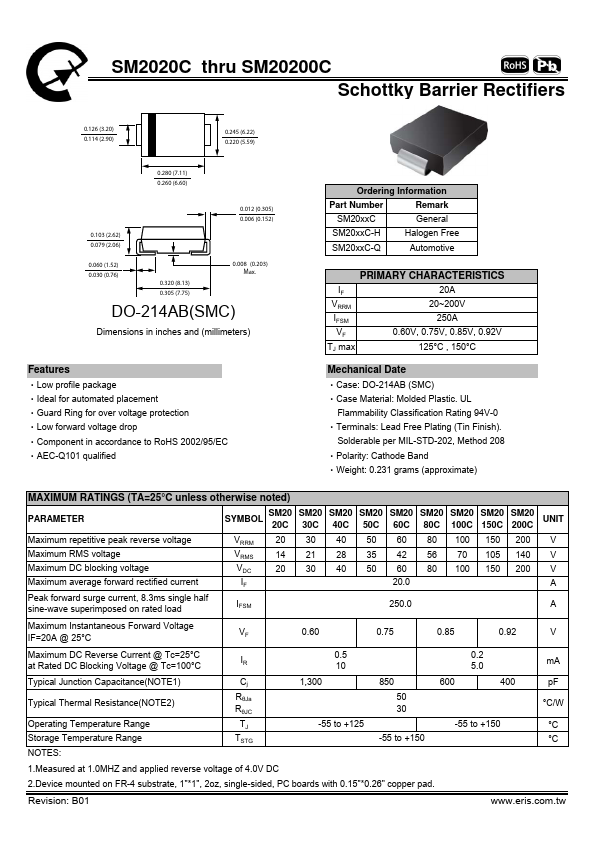

SM2040C
Features
‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧ponent in accordance to Ro HS 2002/95/EC ‧AEC-Q101 qualified
Ordering Information
Part Number SM20xx C
Remark General
SM20xx C-H
Halogen Free
SM20xx C-Q
Automotive
PRIMARY CHARACTERISTICS
20A
VRRM
20~200V
IFSM
250A
0.60V, 0.75V, 0.85V, 0.92V
TJ max
125°C , 150°C
Mechanical Date
‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL
Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish).
Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate)
MAXIMUM RATINGS (TA=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load
SYMBOL
SM20 20C
VRRM
VRMS
SM20...
