SM2080C, SM2020C - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

SM2080C Datasheet Preview — This datasheet PDF includes multiple part numbers: SM2080C, SM2020C. Please refer to the document for exact specifications by model.

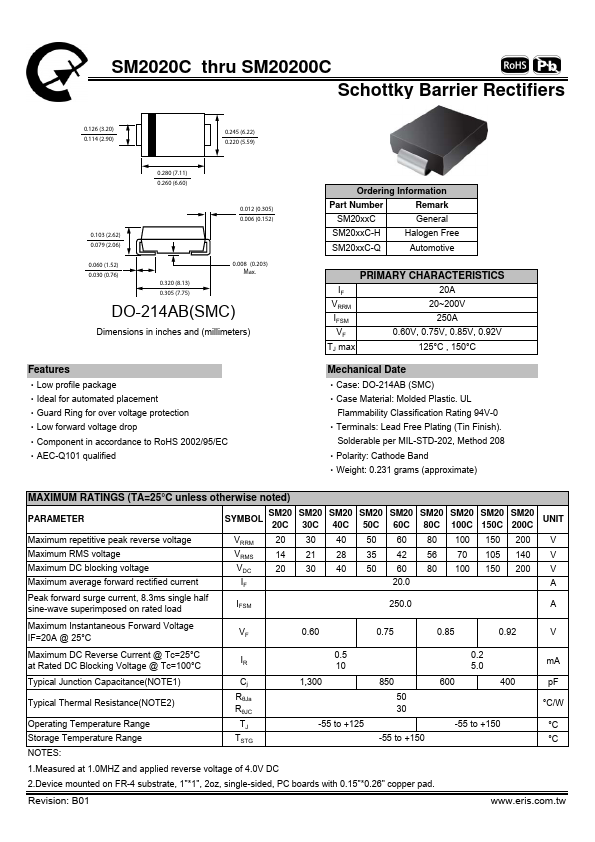

datasheet Preview Page 2

Datasheet Details

Part number	SM2080C, SM2020C
Manufacturer	Eris
File Size	179.58 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM2020C-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SM2080C, SM2020C. Please refer to the document for exact specifications by model.

SM2080C Product details

Features

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SM20xxC Remark General SM20xxC-H Halogen Free SM20xxC-Q Automotive.
