SM3030CD2, SM3020CD2 Schottky Barrier Rectifiers

Eris

Description

SM3020CD2 thru SM30200CD2 Schottky Barrier Rectifiers D2-PAK Primary Characteristics IF 30 A VRRM 20~200 V IFSM 200 A VF 0.60,0.75,0.85,0.

📥 Download Datasheet

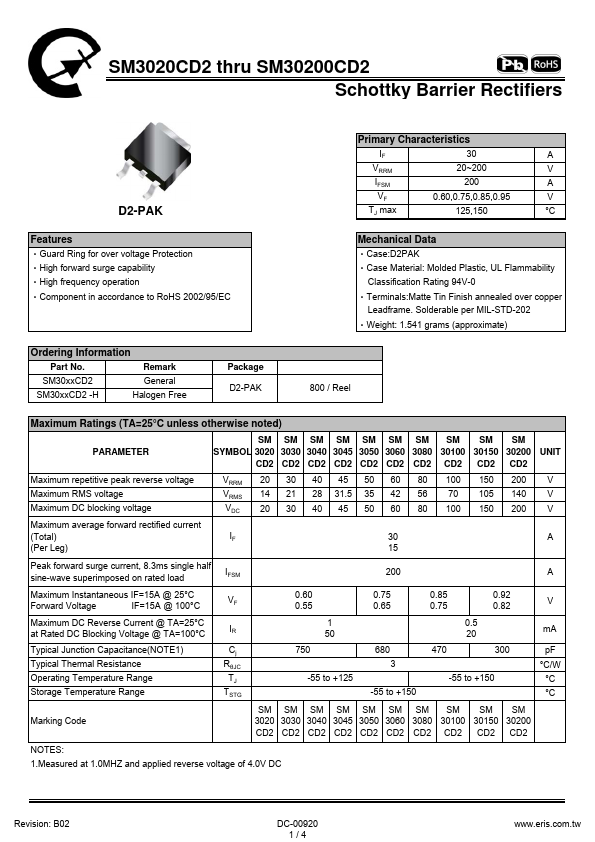

SM3030CD2 Datasheet Preview — This datasheet PDF includes multiple part numbers: SM3030CD2, SM3020CD2. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SM3030CD2, SM3020CD2
Manufacturer: Eris
File Size: 316.29 KB
Datasheet: SM3020CD2-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM3030CD2, SM3020CD2.
Please refer to the document for exact specifications by model.

Features

* ‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Case:D2PAK ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals:Matte Tin Finish annealed over copper Leadf
