SM320A Schottky Barrier Rectifiers

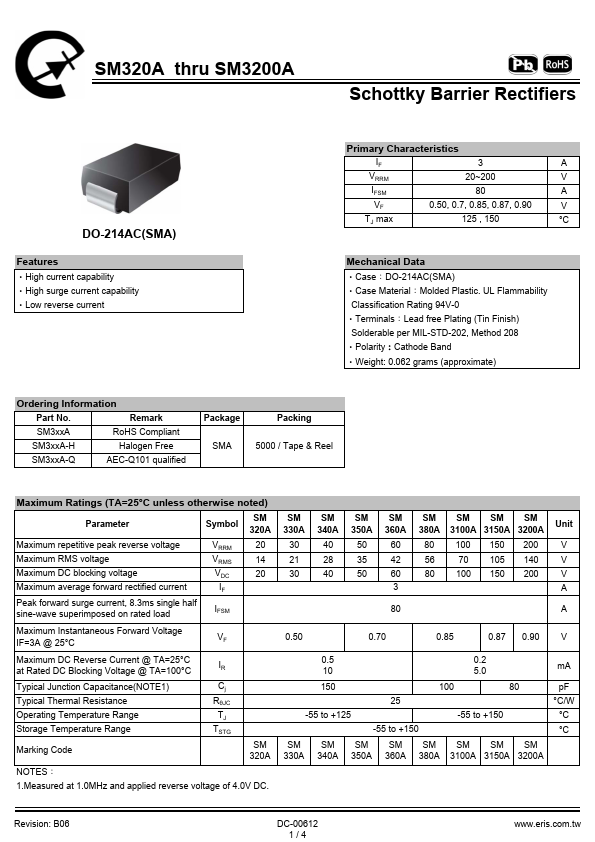

📥 Download Datasheet  Datasheet Preview Page 1

Description

SM320A thru SM3200A Schottky Barrier Rectifiers DO-214AC(SMA) .

📥 Download Datasheet

Preview of SM320A PDF

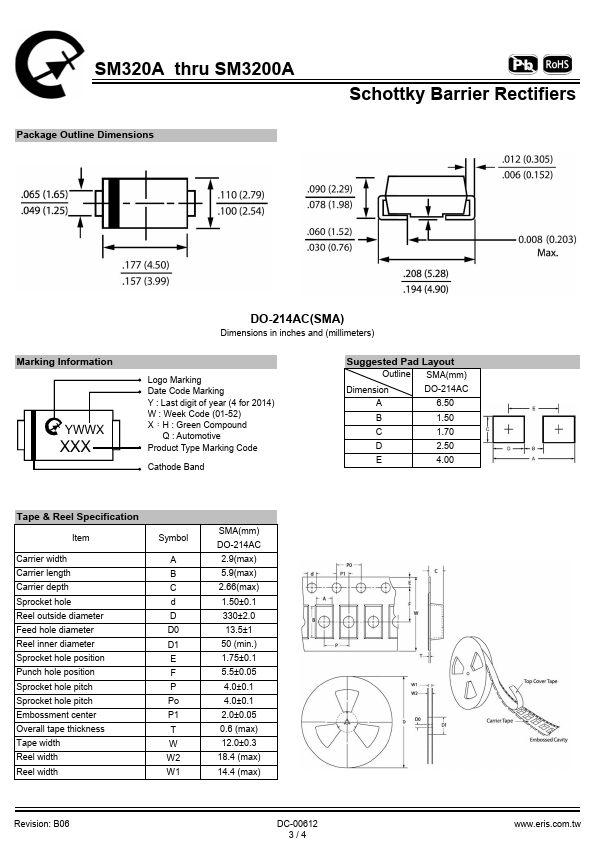

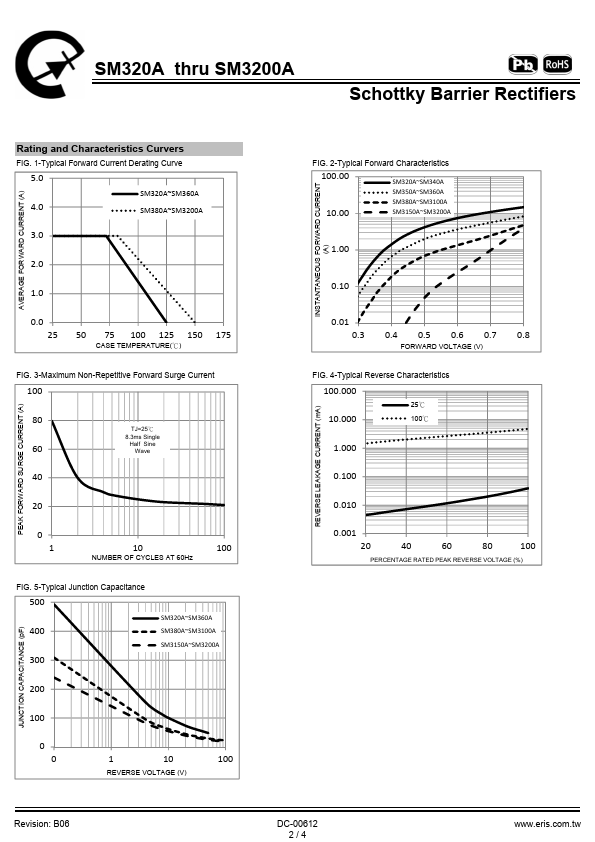

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SM320A
Manufacturer
Eris
File Size
348.30 KB
Datasheet
SM320A-Eris.pdf
Description
Schottky Barrier Rectifiers

Features

* ‧High current capability ‧High surge current capability ‧Low reverse current Primary Characteristics IF 3 A VRRM 20~200 V IFSM 80 A VF 0.50, 0.7, 0.85, 0.87, 0.90 V TJ max 125 , 150 °C Mechanical Data ‧Case:DO-214AC(SMA) ‧Case Material:Molded Plastic. UL Flammability Classification

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are
