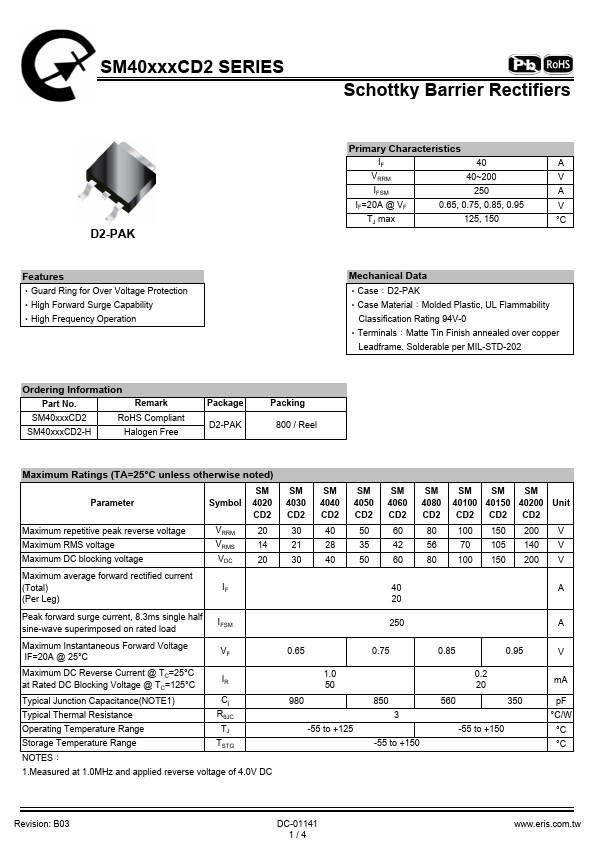

SM40100CD2, SM4020CD2 - Schottky Barrier Rectifiers

Eris

Datasheet Details

Part number: SM40100CD2, SM4020CD2
Manufacturer: Eris
File Size: 339.83 KB
Datasheet: SM4020CD2-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM40100CD2, SM4020CD2.
Please refer to the document for exact specifications by model.

‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation Mechanical Data ‧Case：D2-PAK ‧Case Material：Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals：Matte Tin Finish annealed over copper Leadframe. Solderable per MIL-STD-202 Ordering Information Part No. Remark SM40xxxCD2 RoHS Compliant SM40xxxCD2-H Halogen Free Package D2-PAK Packing 800 / Reel Maximum Ratings (TA=25°C unless otherwise noted) Parameter Maximum repetitive.
