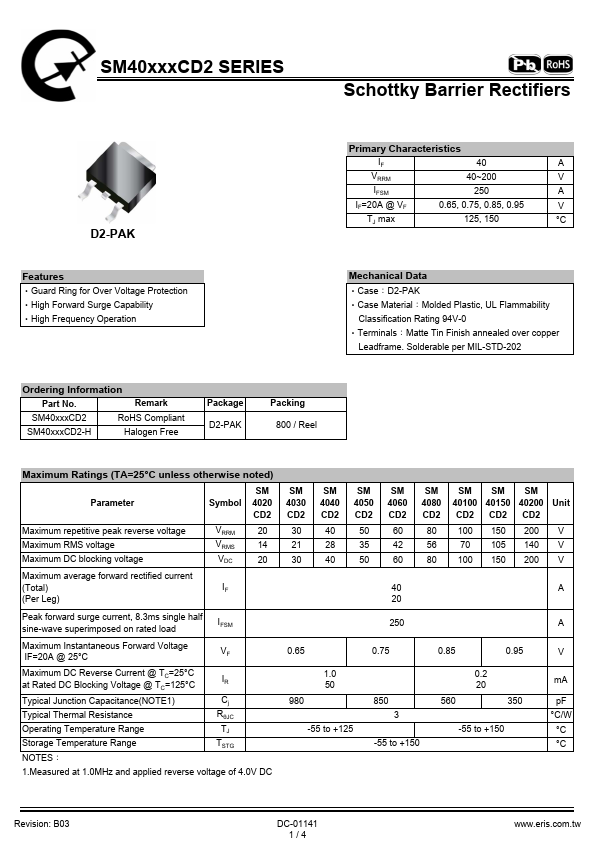

SM40200CD2
Features
‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation
Mechanical Data
‧Case：D2-PAK ‧Case Material：Molded Plastic, UL Flammability
Classification Rating 94V-0 ‧Terminals：Matte Tin Finish annealed over copper
Leadframe. Solderable per MIL-STD-202
Ordering Information
Part No.
Remark
SM40xxx CD2
Ro HS pliant
SM40xxx CD2-H
Halogen Free

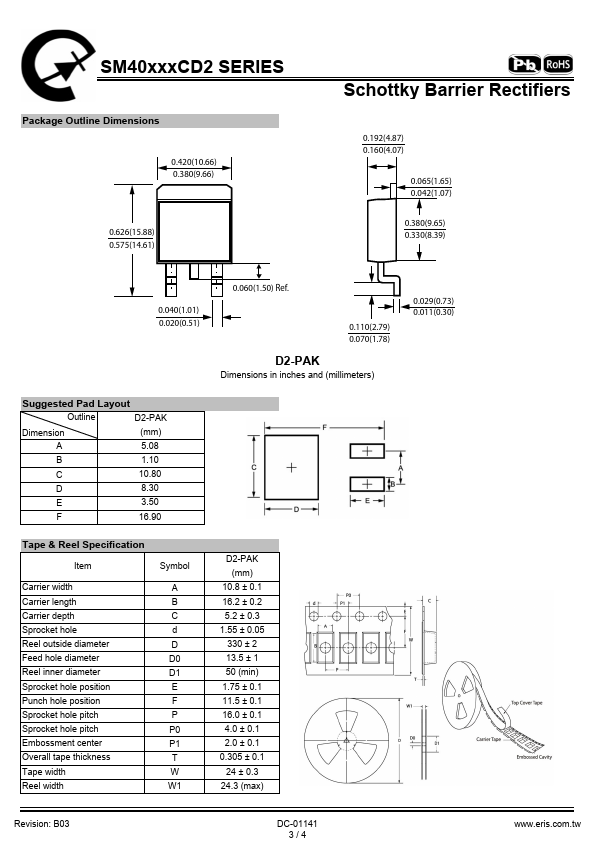

Package D2-PAK
Packing 800 / Reel
Maximum Ratings (TA=25°C unless otherwise noted)
Parameter
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current (Total) (Per Leg)
Symbol
VRRM VRMS VDC
SM 4020 CD2
20 14 20
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load
IFSM
Maximum Instantaneous Forward Voltage IF=20A @ 25°C
Maximum DC Reverse Current @ TC=25°C at Rated DC Blocking Voltage @ TC=125°C
Typical Junction Capacitance(NOTE1) Typical Thermal Resistance Operating Temperature...
