SM5100AFS, SM520AFS Schottky Barrier Rectifiers

Eris

Description

SM5xxxAFS SERIES Schottky Barrier Rectifiers SMAF-S .

📥 Download Datasheet

SM5100AFS Datasheet Preview — This datasheet PDF includes multiple part numbers: SM5100AFS, SM520AFS. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SM5100AFS, SM520AFS
Manufacturer: Eris
File Size: 287.04 KB
Datasheet: SM520AFS-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM5100AFS, SM520AFS.
Please refer to the document for exact specifications by model.

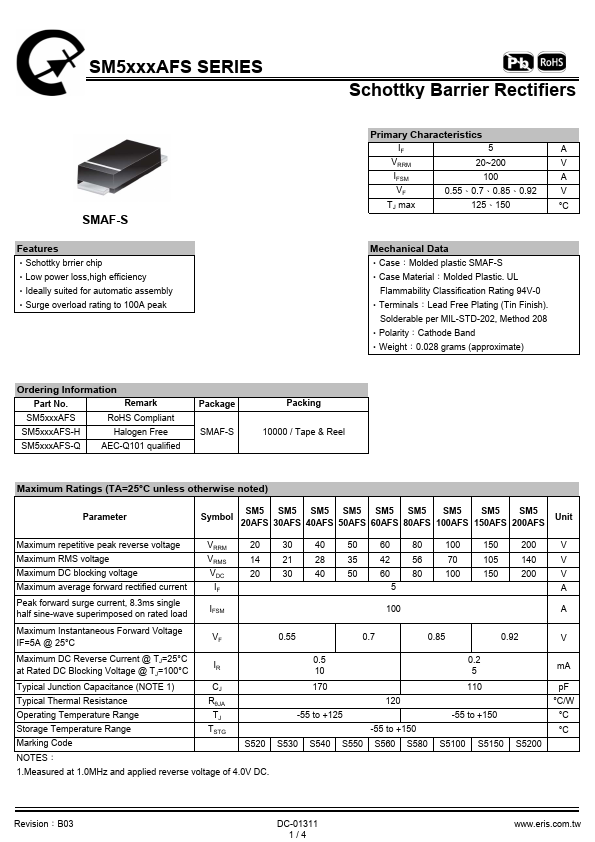

Features

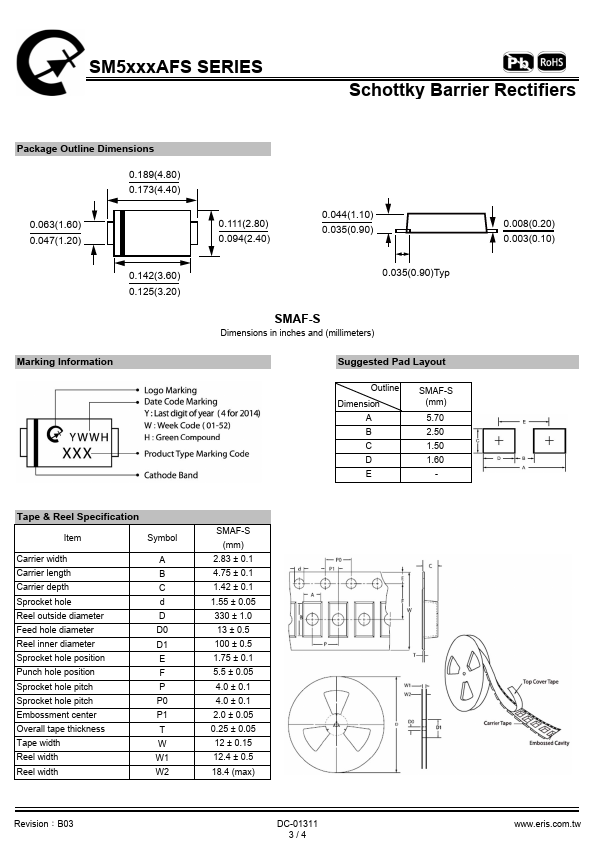

* ‧Schottky brrier chip ‧Low power loss,high efficiency ‧Ideally suited for automatic assembly ‧Surge overload rating to 100A peak Primary Characteristics IF 5 A VRRM 20~200 V IFSM 100 A VF 0.55、0.7、0.85、0.92 V TJ max 125、150 °C Mechanical Data ‧Case：Molded plastic SMAF-S ‧Case Materi

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this docum
