SMDJ11CA, SMDJ5.0A Datasheet - Eris

SMDJ11CA Transient Voltage Suppressors

SMDJ SERIES Transient Voltage Suppressors(3000W) 0.126 (3.20) 0.114 (2.90) 0.245 (6.22) 0.220 (5.59) 0.280 (7.11) 0.260 (6.60) 0.103 (2.62) 0.079 (2.06) 0.060 (1.52) 0.030 (0.76) 0.320 (8.13) 0.305 (7.75) 0.012 (0.305) 0.006 (0.152) 0.008 (0.203) Max. DO-214AB(SMC) Dimensions in inches and (millimeters) Ordering Information Part Number Compound SMDJ SERIES General SMDJ SERIES-H Halogen Free SMDJ SERIES-Q Automotive PRIMARY CHARACTERISTICS VBR 5.0~440V PPPM 3000W PD 6W TJ m.

SMDJ11CA Features

* ‧Constructed with Glass Passivated Die ‧3000W peak pulse power Dissipation ‧Excellent clamping capability ‧Uni and Bidirectional unit ‧Very fast response time ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 Qualified Mechanical Data ‧Cases: DO-214AB(SMC) ‧Case Material: Molded Plastic. UL Fla

SMDJ5.0A-Eris.pdf

This datasheet PDF includes multiple part numbers: SMDJ11CA, SMDJ5.0A. Please refer to the document for exact specifications by model.

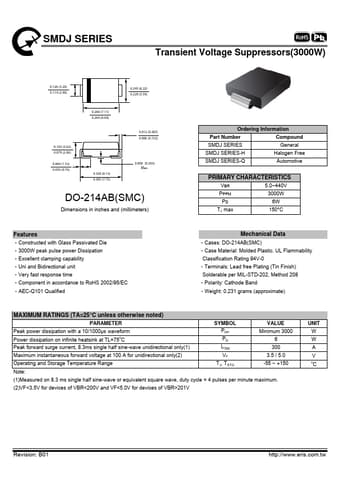

SMDJ11CA Datasheet Preview Page 2 SMDJ11CA Datasheet Preview Page 3

Datasheet Details

Part number:

SMDJ11CA, SMDJ5.0A

Manufacturer:

Eris

File Size:

541.18 KB

Description:

Transient voltage suppressors.

Note:

This datasheet PDF includes multiple part numbers: SMDJ11CA, SMDJ5.0A.
Please refer to the document for exact specifications by model.
