SMF120A, SMF5.0A - Transient Voltage Suppressors

Name: SMF120A
SKU: SMF120A-1180569

Eris

The SMF120A by Eris is a Transient Voltage Suppressors. Below is the official datasheet preview.

Datasheet Details

Part number	SMF120A, SMF5.0A
Manufacturer	Eris
File Size	303.69 KB
Description	Transient Voltage Suppressors
Datasheet	SMF5.0A-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SMF120A, SMF5.0A. Please refer to the document for exact specifications by model.

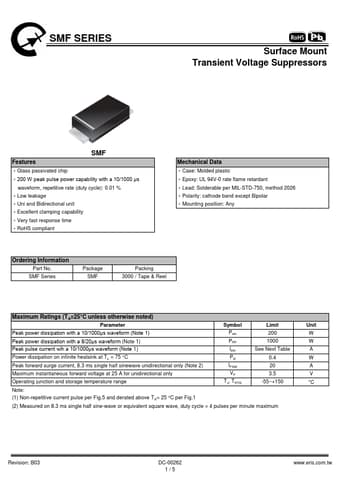

Additional preview pages of the SMF120A datasheet.

‧Glass passivated chip ‧200 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % ‧Low leakage ‧Uni and Bidirectional unit ‧Excellent clamping capability ‧Very fast response time ‧RoHS compliant Mechanical Data ‧Case: Molded plastic ‧Epoxy: UL 94V-0 rate flame retardant ‧Lead: Solderable per MIL-STD-750, method 2026 ‧Polarity: cathode band except Bipolar ‧Mounting position: Any Ordering Information Part No. SMF Series Package SMF Packing 3000 / Tape &.
