SP1540S, SP1520S Schottky Barrier Rectifiers

Eris

Description

SP1520S thru SP15200S .405(10.27) .383(9.72) .133(3.39) .121(3.08) .187(4.77) .171(4.36) .125(3.20) .100(2.54) Schottky Barrier Rectifiers .600(1.

📥 Download Datasheet

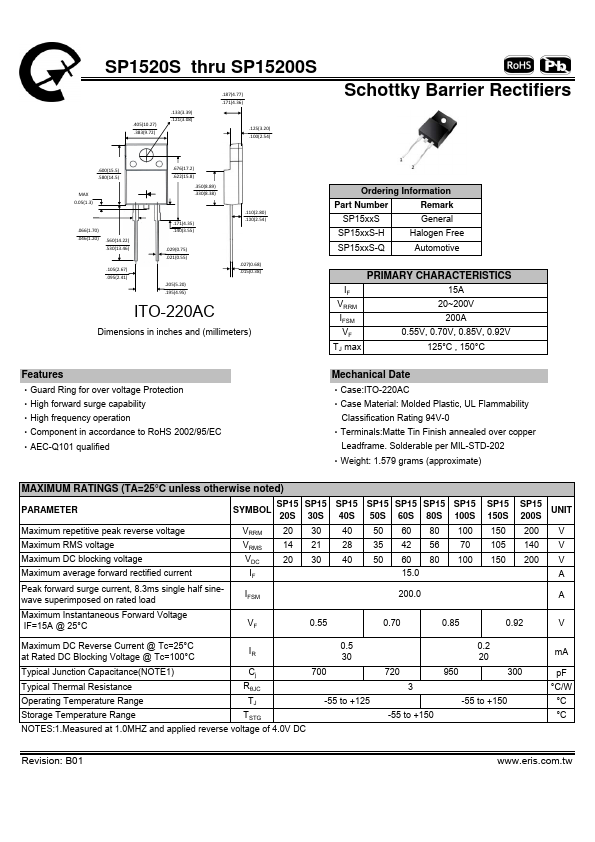

SP1540S Datasheet Preview — This datasheet PDF includes multiple part numbers: SP1540S, SP1520S. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SP1540S, SP1520S
Manufacturer: Eris
File Size: 228.65 KB
Datasheet: SP1520S-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SP1540S, SP1520S.
Please refer to the document for exact specifications by model.

Features

* ‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SP15xxS Remark General SP15xxS-H Halogen Free SP15xxS-Q Automotive PRIMARY CHARACTERISTICS IF 15
