SP1640C, SP1620C Schottky Barrier Rectifiers

Eris

Description

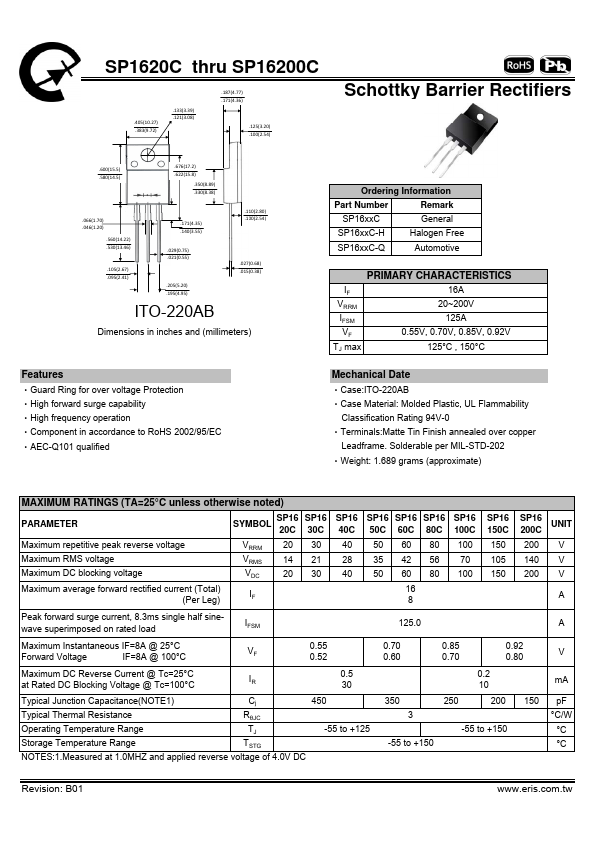

SP1620C thru SP16200C .405(10.27) .383(9.72) .133(3.39) .121(3.08) .187(4.77) .171(4.36) .125(3.20) .100(2.54) Schottky Barrier Rectifiers .600(1.

📥 Download Datasheet

SP1640C Datasheet Preview — This datasheet PDF includes multiple part numbers: SP1640C, SP1620C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SP1640C, SP1620C
Manufacturer: Eris
File Size: 234.82 KB
Datasheet: SP1620C-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SP1640C, SP1620C.
Please refer to the document for exact specifications by model.

Features

* ‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SP16xxC Remark General SP16xxC-H Halogen Free SP16xxC-Q Automotive PRIMARY CHARACTERISTICS IF 16
