SP20150C, SP2020C Schottky Barrier Rectifiers

Eris

Description

SP20xxC SERIES Schottky Barrier Rectifiers ITO-220AB .

📥 Download Datasheet

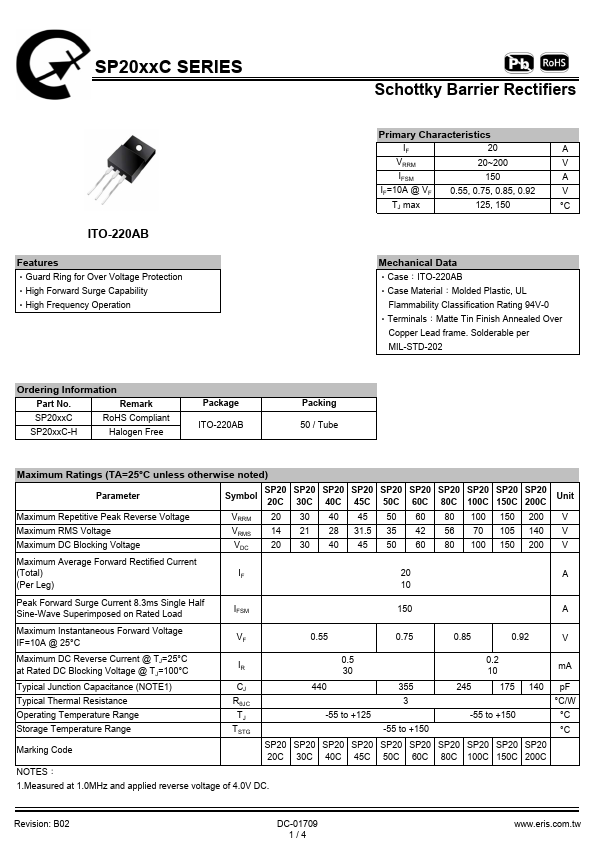

SP20150C Datasheet Preview — This datasheet PDF includes multiple part numbers: SP20150C, SP2020C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SP20150C, SP2020C
Manufacturer: Eris
File Size: 266.46 KB
Datasheet: SP2020C-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SP20150C, SP2020C.
Please refer to the document for exact specifications by model.

Features

* ‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation Primary Characteristics IF 20 A VRRM 20~200 V IFSM 150 A IF=10A @ VF 0.55, 0.75, 0.85, 0.92 V TJ max 125, 150 °C Mechanical Data ‧Case：ITO-220AB ‧Case Material：Molded Plastic, UL Flammabi

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu
