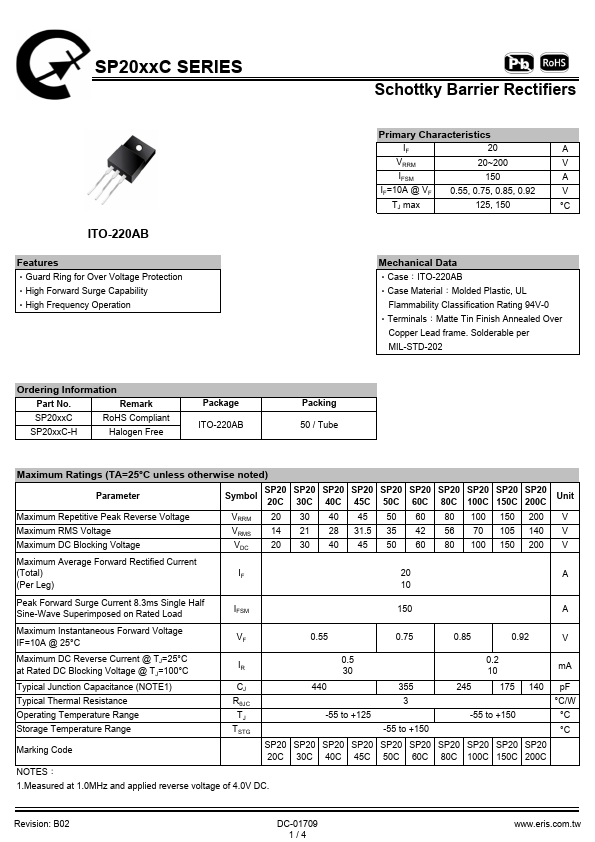

SP2030C, SP2020C - Schottky Barrier Rectifiers

Eris

Datasheet Details

Part number	SP2030C, SP2020C
Manufacturer	Eris
File Size	266.46 KB
Description	Schottky Barrier Rectifiers
Datasheet	SP2020C-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SP2030C, SP2020C. Please refer to the document for exact specifications by model.

‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation Primary Characteristics IF 20 A VRRM 20~200 V IFSM 150 A IF=10A @ VF 0.55, 0.75, 0.85, 0.92 V TJ max 125, 150 °C Mechanical Data ‧Case：ITO-220AB ‧Case Material：Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals：Matte Tin Finish Annealed Over Copper Lead frame. Solderable per MIL-STD-202 Ordering Information Part No. Remark SP20xxC RoHS Compliant SP20xxC-H Ha.
