SP3020C - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

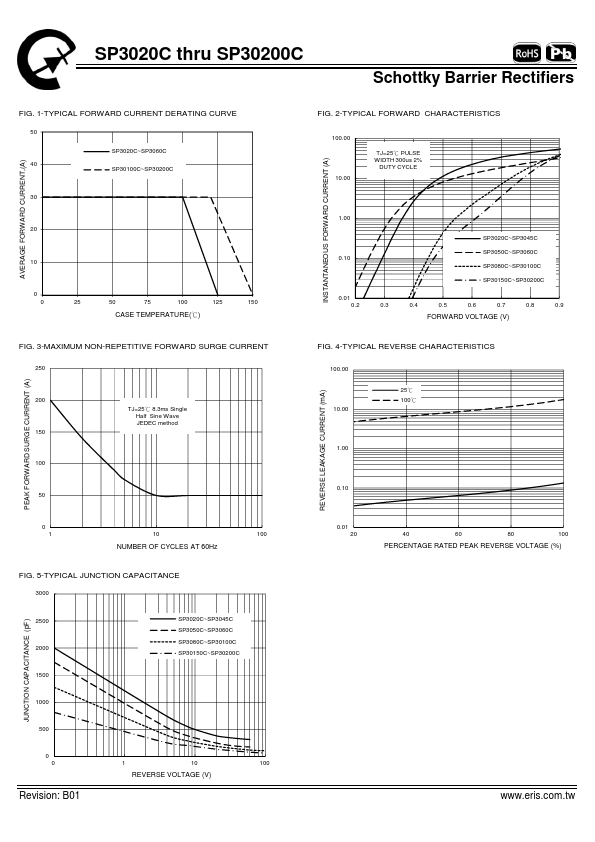

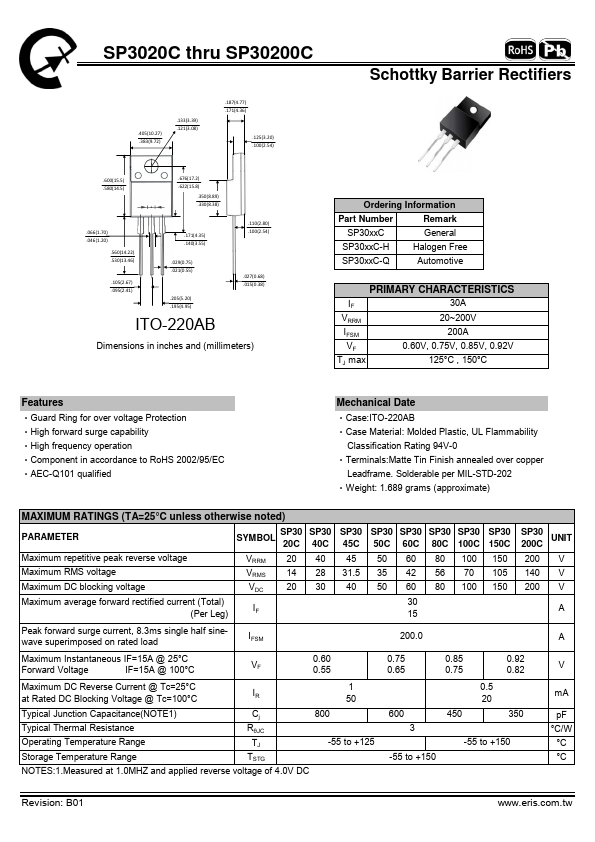

SP3020C Datasheet Preview — Preview of SP3020C PDF

datasheet Preview Page 2

Datasheet Details

Part number	SP3020C
Manufacturer	Eris
File Size	201.97 KB
Description	Schottky Barrier Rectifiers
Datasheet	SP3020C-Eris.pdf

SP3020C Product details

Features

‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case:ITO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals:Matte Tin Finish annealed over copper Leadframe. Solderable per MIL-STD-202 ‧Weight: 1.689 grams (approximate).
