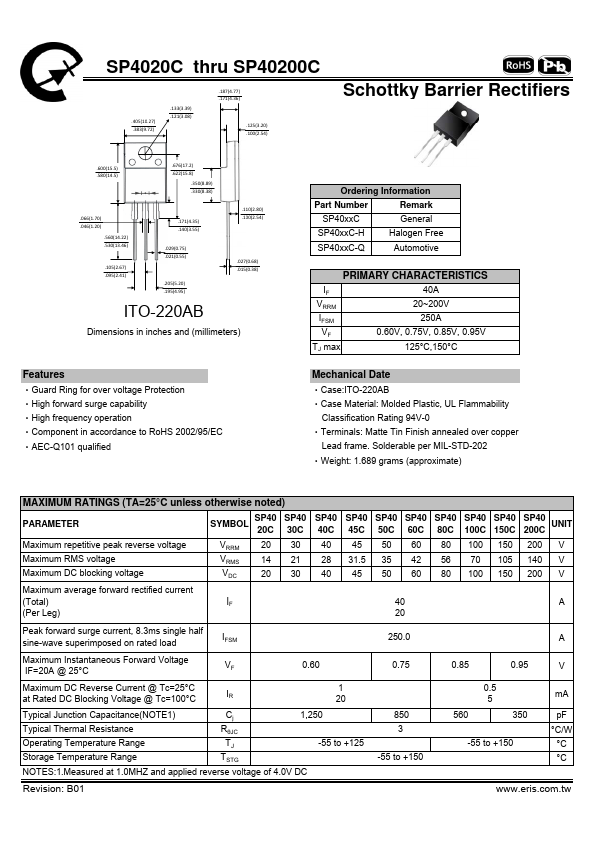

SP4020C
Features
‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧ponent in accordance to Ro HS 2002/95/EC ‧AEC-Q101 qualified
Ordering Information
Part Number SP40xx C
Remark General
SP40xx C-H
Halogen Free
SP40xx C-Q
Automotive
PRIMARY CHARACTERISTICS
40A
VRRM
20~200V
IFSM
250A
0.60V, 0.75V, 0.85V, 0.95V
TJ max
125°C,150°C
Mechanical Date
‧Case:ITO-220AB ‧Case Material: Molded Plastic, UL Flammability
Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over copper
Lead frame. Solderable per MIL-STD-202 ‧Weight: 1.689 grams (approximate)
MAXIMUM RATINGS (TA=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage
Maximum average forward rectified current (Total) (Per Leg)
SYMBOL
SP40 20C
VRRM
VRMS
SP40 30C
30 21 30
SP40 40C
40 28 40
SP40 45C
45 31.5...
