ESP32 - 2.4GHz Wi-Fi+Bluetooth

Datasheet Summary

Features

  • Wi-Fi.
  • 802.11b/g/n.
  • 802.11n (2.4 GHz), up to 150 Mbps.
  • WMM.
  • TX/RX A-MPDU, RX A-MSDU.
  • Immediate Block ACK.
  • Defragmentation.
  • Automatic Beacon monitoring (hardware TSF).
  • Four virtual Wi-Fi interfaces.
  • Simultaneous support for Infrastructure Station, SoftAP, and Promiscuous modes Note that when ESP32 is in Station mode, performing a scan, the SoftAP channel will be changed.
  • Antenna diversity Bluetooth®.

📥 Download Datasheet

Datasheet preview – ESP32

Datasheet Details

Part number ESP32
Manufacturer Espressif Systems
File Size 1.15 MB
Description 2.4GHz Wi-Fi+Bluetooth
Datasheet download datasheet ESP32 Datasheet
Additional preview pages of the ESP32 datasheet.

📁 Similar Datasheet

Other Datasheets by Espressif Systems

Full PDF Text Transcription

Click to expand full text

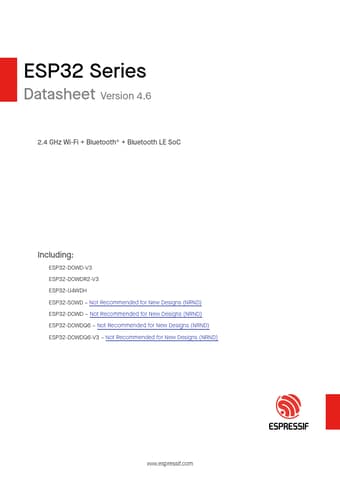

ESP32 Series Datasheet Version 4.6 2.4 GHz Wi-Fi + Bluetooth® + Bluetooth LE SoC Including: ESP32-D0WD-V3 ESP32-D0WDR2-V3 ESP32-U4WDH ESP32-S0WD – Not Recommended for New Designs (NRND) ESP32-D0WD – Not Recommended for New Designs (NRND) ESP32-D0WDQ6 – Not Recommended for New Designs (NRND) ESP32-D0WDQ6-V3 – Not Recommended for New Designs (NRND) www.espressif.com Product Overview ESP32 is a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip designed with the TSMC low-power 40 nm technology. It is designed to achieve the best power and RF performance, showing robustness, versatility and reliability in a wide variety of applications and power scenarios.
