ET7222 Datasheet - Etek Microelectronics

ET7222 2- to 1-port analog switches

The ET7222 is 2­ to 1­port analog switches. Their wide bandwidth and low bit­to­bit skew allow them to pass high­speed differential signals with good signal integrity. Each switch is bidirectional and offers little or no attenuation of the high­ speed signals at the outputs. Industry­leading advanta.

ET7222 Features

* RON is Typically 6.0Ω at VCC = 3.3 V Low Bit­to­Bit Skew: Typically 50 ps Low Crosstalk: ­45 dB @ 250 MHz Low Current Consumption: 1.0 µA Near­Zero Propagation Delay: 250 ps Channel On­Capacitance: 4.0 pF (Typical) VCC Operating Range: 1.65 V to 4.5 V >750 MHz Bandwidth (or Data Frequency) Package :

ET7222-EtekMicroelectronics.pdf

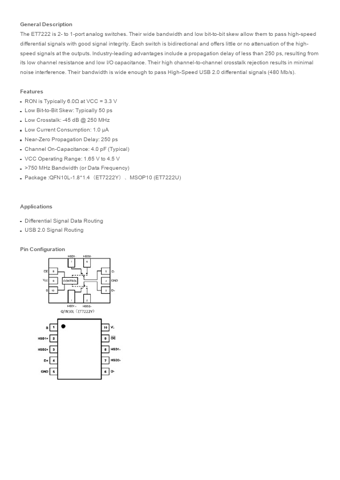

Preview of ET7222 PDF

Datasheet Details

Part number:

ET7222

Manufacturer:

Etek Microelectronics

File Size:

150.86 KB

Description:

2- to 1-port analog switches.
