FLD3F7CZ - DFB CATV Laser

Description

This DFB laser for analog AM application is a high power laser capable of carrying 78 channels with excellent CSO, CTB, and CNR performance.

It is packaged in a ‘butterfly’ type module.

Features

  • Direct Modulation DFB Laser Built-in TEC, Thermistor and Monitor PD Optical Isolator 14 Pin Butterfly Type Module 78 Channel NTSC Loading (112 Channel device available).
  • Low Residual CSO & CTB.
  • 11 dB Link Budget Available FLD3F7CZ.

📥 Download Datasheet

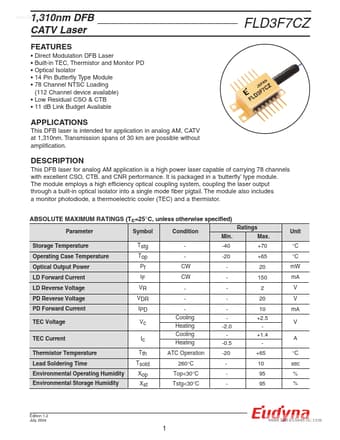

Datasheet preview – FLD3F7CZ

Datasheet Details

Part number FLD3F7CZ
Manufacturer Eudyna Devices
File Size 252.61 KB
Description DFB CATV Laser
Datasheet download datasheet FLD3F7CZ Datasheet
Additional preview pages of the FLD3F7CZ datasheet.

📁 Similar Datasheet

  • FLD3F11CX - MQW-DFB Direct Modulation Laser (Fujitsu)
  • FLD3F12JL - MQW-DFB Return Path Laser (Fujitsu Media Devices)
  • FLD00030 - Analog Ambient Light Sensor (Fairchild Semiconductor)
  • FLD12-030 - Constant Current LED Driver (FranMar)
  • FLD12-035 - Constant Current LED Driver (FranMar)
  • FLD12-050 - Constant Current LED Driver (FranMar)
  • FLD12-060 - Constant Current LED Driver (FranMar)
  • FLD222NC2NG - LED Modules (Dialight)
  • FLD24-100 - Constant Current LED Driver (FranMar)
  • FLD24-120 - Constant Current LED Driver (FranMar)
Other Datasheets by Eudyna Devices

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 1,310nm DFB CATV Laser FEATURES • • • • • Direct Modulation DFB Laser Built-in TEC, Thermistor and Monitor PD Optical Isolator 14 Pin Butterfly Type Module 78 Channel NTSC Loading (112 Channel device available) • Low Residual CSO & CTB • 11 dB Link Budget Available FLD3F7CZ APPLICATIONS This DFB laser is intended for application in analog AM, CATV at 1,310nm. Transmission spans of 30 km are possible without amplification. DESCRIPTION This DFB laser for analog AM application is a high power laser capable of carrying 78 channels with excellent CSO, CTB, and CNR performance. It is packaged in a ‘butterfly’ type module.
