EUM6801

3-Phase Sensorless Fan Motor Driver

EUM6801 Features

* 3-Phase Sensorless Drive Function (No Hall Sensor Needed) Few External Components (3 CAP Only) Low Startup Voltage:

EUM6801 General Description

EUM6801 is a 3-phase sensorless fan motor driver. It senses the BEMF (Back Electromotive Force) of the motor in rotation and provides corresponding commutation current to the motor. The sensorless technology doesn’t need Hall sensors. The absence of the Hall sensor makes the fabrication of the motor.

EUM6801 Datasheet (251.31 KB)

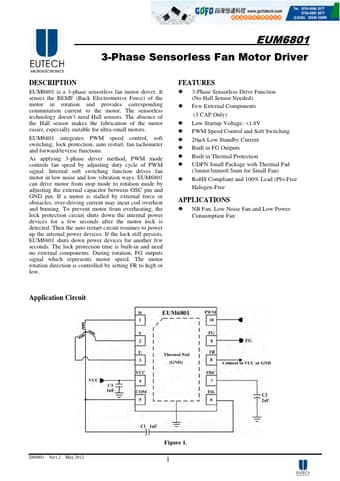

Preview of EUM6801 PDF

Datasheet Details

Part number:

EUM6801

Manufacturer:

Eutech Microelectronics

File Size:

251.31 KB

Description:

3-phase sensorless fan motor driver.
