EUP3288 - Synchronous Step-Down Converter

Description

The EUP3288 is a synchronous, step-down constant ontime buck regulator capable of driving 8A continuous load current.

The EUP3288 can operate with an input range 4.5V to 30V and the output can be externally set down to 0.8V.

Features

  • Wide Input Voltage Range: 4.5V to 30V.
  • 8A Output Current.
  • Excellent Line and Load Transient Responses.
  • Integrated 23mΩ N-Channel MOSFET for High Side.
  • Integrated 13mΩ N-Channel MOSFET for Low Side.
  • Programmable PWM Frequency from 100KHz to 1MHz.
  • Internal Soft-Start.
  • Selectable Forced PWM or Automatic PFM/PWM Mode.
  • Power Good Monitoring.
  • Under-Voltage Protection.
  • Over-Voltage Protection.
  • Cycle-by-Cycle Current Limit.
  • Over-Temperatu.

📥 Download Datasheet

Datasheet Details

Part number EUP3288
Manufacturer Eutech Microelectronics
File Size 487.87 KB
Description Synchronous Step-Down Converter
Datasheet download datasheet EUP3288 Datasheet

📁 Similar Datasheet

  • EUP3427 - Synchronous Step-Down Converter (Eutech)
  • EUP3618 - Charge Pump Flash LED Driver (Eutech)
  • EUP7998 - Sink/Source DDR Termination Regulator (Eutech)
  • EUP8090 - 1A Linear Li-Ion/Polymer Charger IC (Eutech)
Other Datasheets by Eutech Microelectronics
  • EUP3282H - 340KHz Synchronous Step-Down Converter
  • EUP3284H - 340KHz Synchronous Step-Down Converter
  • EUP3265 - 3MHz Synchronous Step-Down DC-DC Converter
  • EUP3270 - CC/CV Mode Synchronous Step-Down Converter
  • EUP3271 - CC/CV Mode Synchronous Step-Down Converter
  • EUP3271A - CC/CV Mode Synchronous Step-Down Converter
  • EUP3290 - 2.25MHz Synchronous Step-Down DC/DC Regulator
  • EUP3291 - 2.25MHz Synchronous Step-Down DC/DC Regulator

Full PDF Text Transcription

Click to expand full text

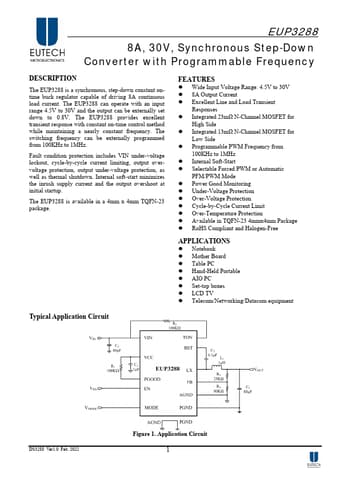

EUP3288 8A, 30V, Synchronous Step-Down Converter with Programmable Frequency DESCRIPTION The EUP3288 is a synchronous, step-down constant ontime buck regulator capable of driving 8A continuous load current. The EUP3288 can operate with an input range 4.5V to 30V and the output can be externally set down to 0.8V. The EUP3288 provides excellent transient response with constant on-time control method while maintaining a nearly constant frequency. The switching frequency can be externally programmed from 100KHz to 1MHz. Fault condition protection includes VIN under-voltage lockout, cycle-by-cycle current limiting, output overvoltage protection, output under-voltage protection, as well as thermal shutdown.
