EUP8020X - Dual Source AC/USB Li-Ion/Polymer Charger IC

General Description

The EUP8020X series are highly integrated single cell Li-Ion/Polymer battery charger IC designed for handheld devices.

The EUP8020X accepts two power inputs, normally one from a USB port and another one from AC-adaptor.

Key Features

  • z Charges Single Cell Li-Ion/Polymer from Either AC Adapter or USB With Autonomous Power-Source Selection Integrated Power FET and Current Sensor for Up to 1A Charge.

📥 Download Datasheet

Datasheet Details

Part number EUP8020X
Manufacturer Eutech Microelectronics
File Size 434.65 KB
Description Dual Source AC/USB Li-Ion/Polymer Charger IC
Datasheet download datasheet EUP8020X Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EUP8090 1A Linear Li-Ion/Polymer Charger IC Eutech
EUP3427 Synchronous Step-Down Converter Eutech
EUP3618 Charge Pump Flash LED Driver Eutech
EUP7998 Sink/Source DDR Termination Regulator Eutech

Other Datasheets by Eutech Microelectronics

Part Number Description
EUP8010X Linear Li-Ion/Polymer Charger IC
EUP8051 Low Cost 1A Linear Battery Charge Controllers
EUP8051A Low Cost 1A Linear Battery Charge Controllers
EUP8054 Standalone Linear Li-Ion Battery Charger
EUP8054X Standalone Linear Li-Ion Battery Charger

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

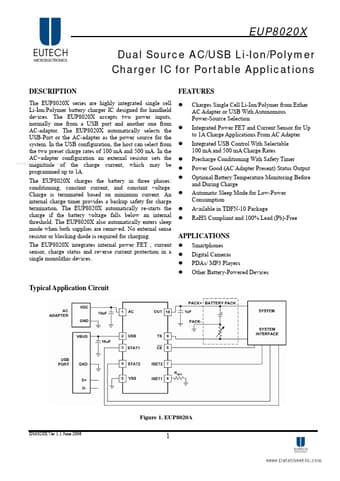

EUP8020X Dual Source AC/USB Li-Ion/Polymer Charger IC for Portable Applications DESCRIPTION The EUP8020X series are highly integrated single cell Li-Ion/Polymer battery charger IC designed for handheld devices. The EUP8020X accepts two power inputs, normally one from a USB port and another one from AC-adaptor. The EUP8020X automatically selects the USB-Port or the AC-adapter as the power source for the system. In the USB configuration, the host can select from the two preset charge rates of 100 mA and 500 mA. In the AC−adapter configuration an external resistor sets the www.DataSheet4U.com magnitude of the charge current, which may be programmed up to 1A. The EUP8020X charges the battery in three phases: conditioning, constant current, and constant voltage.
