ES8326 - Low Power Audio CODEC

Datasheet Summary

Description

ES8326 MIC1N 25 MIC1P 26 DMIC_SDA2/SDINOUT3 27 DMIC_SDA1/SDINOUT2 28 DMIC_SCL/SDINOUT1 29 CE 30 CDATA 31 CCLK 32 MCLK 1 DVDD 2 PVDD 3 DGND 4 SCLK 5 SDIN 6 LRCK 7 SDOUT 8 ES8326 24 VMID 23 ADCVREF 22 AGND 21 AVDD 20 DACVREF 19 LOUT 18 ROUT 17 CPVSSP 16 CPBOT 15 GMS1 14 CPGND 13 GMS0 12 CPTOP 11

Features

  • System.
  • High performance and low power multibit delta-sigma audio ADC and DAC.
  • I2S/PCM/TDM master or slave serial data port.
  • 256/384Fs, USB 12/24 MHz and other non standard audio system clocks.
  • I2C interface Quad DMIC.
  • Support 4-ch digital microphone.
  • 24-bit, 8 to 96 kHz sampling frequency.
  • 110 dB signal to noise ratio, -100 dB THD+N Mono ADC.
  • 24-bit, 8 to 96 kHz sampling frequency.
  • 102 dB signal to noise ratio, -90.

📥 Download Datasheet

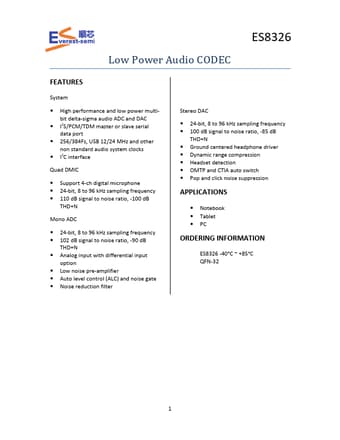

Datasheet preview – ES8326

Datasheet Details

Part number ES8326
Manufacturer Everest Semiconductor
File Size 570.25 KB
Description Low Power Audio CODEC
Datasheet download datasheet ES8326 Datasheet
Additional preview pages of the ES8326 datasheet.

📁 Similar Datasheet

  • ES8310 - 16 steady-state current LED driver (EAST SUN)
  • ES8316 - Colorful wheel flash LED driver IC (EAST SUN)
  • ES833 - Radiation Cooled Triode (AEI)
  • ES8380 - Phoenix DCD Processor (ESS)
  • ES8380 - (ES8380 / ES8381) Phoenix HD Enhanced DVD Processor (ESS)
  • ES8381 - (ES8380 / ES8381) Phoenix HD Enhanced DVD Processor (ESS)
  • ES825-100CF - Leak Sensors (PNEUMERCATOR)
  • ES825-100F - Leak Sensors (PNEUMERCATOR)
  • ES825-100XF - Leak Sensors (PNEUMERCATOR)
  • ES85 - Radiation Cooled Triode (AEI)
Other Datasheets by Everest Semiconductor
  • ES8323 - Low Power Stereo Audio CODEC
  • ES8323S - Low Power Audio CODEC
  • ES8328 - Low Power Stereo Audio CODEC
  • ES8311 - Low Power Mono Audio CODEC
  • ES8316 - Low Power Audio CODEC
  • ES8336 - Low Power Audio CODEC
  • ES8374 - Low Power Mono Audio CODEC
  • ES8388 - Low Power Stereo Audio CODEC

Full PDF Text Transcription

Click to expand full text
Low Power Audio CODEC ES8326 FEATURES System • High performance and low power multibit delta-sigma audio ADC and DAC • I2S/PCM/TDM master or slave serial data port • 256/384Fs, USB 12/24 MHz and other non standard audio system clocks • I2C interface Quad DMIC • Support 4-ch digital microphone • 24-bit, 8 to 96 kHz sampling frequency • 110 dB signal to noise ratio, -100 dB THD+N Mono ADC • 24-bit, 8 to 96 kHz sampling frequency • 102 dB signal to noise ratio, -90 dB THD+N • Analog input with differential input option • Low noise pre-amplifier • Auto level control (ALC) and noise gate • Noise reduction filter Stereo DAC • 24-bit, 8 to 96 kHz sampling frequency • 100 dB signal to noise ratio, -85 dB THD+N • Ground centered headphone driver • Dynamic range compression • Headset detection •
