ALS-PDIC15-21C-L230-TR8 Datasheet - Everlight Electronics

Surface-Mount Ambient Light Sensor

ALS-PDIC15-21C-L230-TR8 Features

* ‧Close responsively to the human eye spectrum ‧Light to Current, analog output ‧Good output linearity across wide illumination range ‧Low sensitivity variation across various light sources ‧Operating temperature performance, -40oC to 85oC ‧Wide supply voltage range, 2.5V to 5.5V ‧Size : 3.2mm(L)

ALS-PDIC15-21C-L230-TR8 General Description

ALS-PDIC15-21C/L230/TR8 Ambient Light Sensor Device, which incorporates a photodiode and a current amplifier IC in a single chip, is a good effective solution to the power saving of display backlighting of mobile appliances, such as the mobile phones and PDAs. Due to the high rejection ratio of infr.

ALS-PDIC15-21C-L230-TR8 Datasheet (256.20 KB)

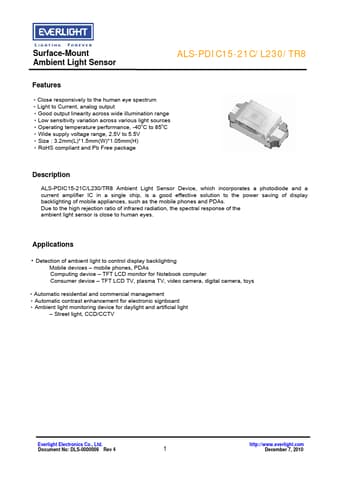

Preview of ALS-PDIC15-21C-L230-TR8 PDF

Datasheet Details

Part number:

ALS-PDIC15-21C-L230-TR8

Manufacturer:

Everlight Electronics

File Size:

256.20 KB

Description:

Surface-mount ambient light sensor.
