Part number: EL3023
Manufacturer: Everlight Electronics
File Size: 1.63MB
Download: 📄 Datasheet

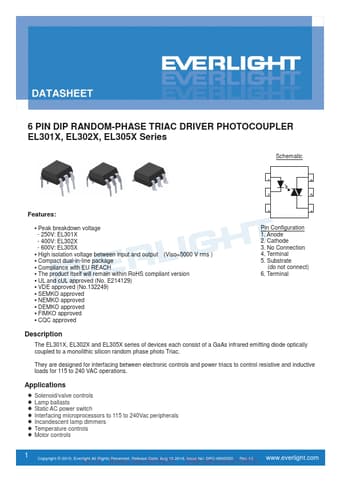

Description: 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER
Part number: EL3023
Manufacturer: Everlight Electronics
File Size: 1.63MB
Download: 📄 Datasheet
Description: 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER
* Peak breakdown voltage
- 250V: EL301X
- 400V: EL302X
- 600V: EL305X
* High isolation voltage between input and output (Viso=5000 V rms )
* Compact dual-in-.
* Solenoid/valve controls
* Lamp ballasts
* Static AC power switch
* Interfacing microprocessors to 115 .
The EL301X, EL302X and EL305X series of devices each consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon random phase photo Triac.
They are designed for interfacing between electronic controls and power triacs to cont.
