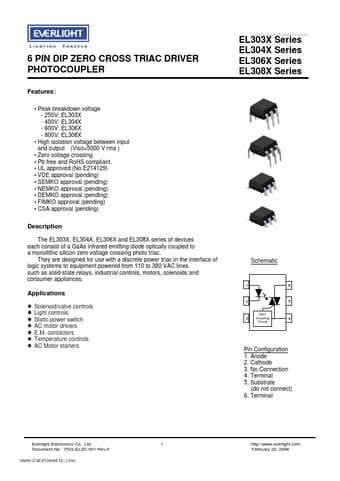

EL3033 - 6 PIN DIP ZERO CROSS TRIAC DRIVER PHOTOCOUPLER
The EL303X, EL304X, EL306X and EL308X series of devices each consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon zero voltage crossing photo triac.
They are designed for use with a discrete power triac in the interface of logic systems to equipment powered from 110 to
EL3033 Features
* Peak breakdown voltage - 250V: EL303X - 400V: EL304X - 600V: EL306X - 800V: EL308X
* High isolation voltage between input and output (Viso=5000 V rms )
* Zero voltage crossing
* Pb free and RoHS compliant.
* UL approved (No.E214129)
* VDE approval (
