IRM-2640-SMD-A Infrared Remote-control Receiver

The device is a miniature SMD type infrared remote control system receiver which has been developed and designed by utilizing the most updated IC technology. The PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as an IR filter. The demodulated output signal can .

IRM-2640-SMD-A Features

* ‧High protection ability against EMI . ‧Circular lens to improve the receive characteristic. ‧Line-up for various center carrier frequencies. ‧Low voltage and low power consumption. ‧External dimensions 10.45(L)

* 6.00(W)

* 5.60(H)mm. ‧Top-received SMD. ‧High immunity against ambient light. ‧Pho

IRM-2656-SMD-A-EverlightElectronics.pdf

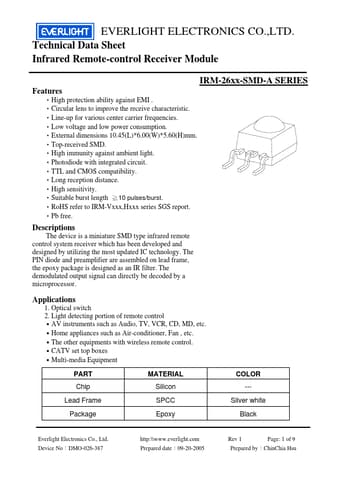

IRM-2640-SMD-A Datasheet Preview — This datasheet PDF includes multiple part numbers: IRM-2640-SMD-A, IRM-2656-SMD-A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRM-2640-SMD-A, IRM-2656-SMD-A

Manufacturer:

Everlight Electronics

File Size:

197.60 KB

Description:

Infrared remote-control receiver.

Note:

This datasheet PDF includes multiple part numbers: IRM-2640-SMD-A, IRM-2656-SMD-A.
Please refer to the document for exact specifications by model.
