IRM-8601-M Datasheet - Everlight Electronics

IRM-8601-M Infrared Remote-control Receiver

The device is a miniature type infrared remote control system receiver which has been developed and designed by utilizing the most updated IC technology. The PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as an IR filter. The demodulated output signal can dire.

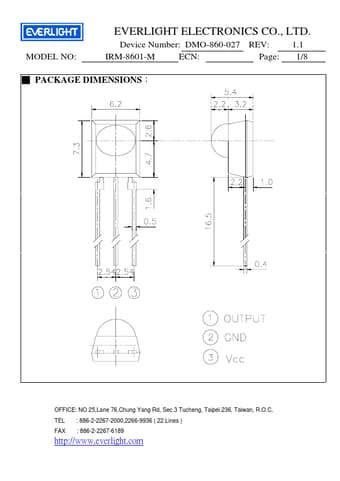

EVERLIGHT ELECTRONICS CO., LTD. MODEL NO: Device Number: DMO-860-027 REV: IRM-8601-M ECN: Page: 1.1 1/8 PACKAGE DIMENSIONS： OFFICE: NO 25,Lane 76,Chung Yang Rd, Sec.3 Tucheng, Taipei 236, Taiwan, R.O.C. TEL FAX : 886-2-2267-2000,2266-9936 ( 22 Lines ) : 886-2-2267-6189 http://www.everlight.com EVERLIGHT ELECTRONICS CO., LTD. MODEL NO: Device Number: DMO-860-027 REV: IRM-8601-M ECN: Page: 1.1 2/8 NOTES： 1. This drawing measure is a standard value. All dimensions are in millimeter.

IRM-8601-M Datasheet (241.31 KB)

Preview of IRM-8601-M PDF

Datasheet Details

Part number:

IRM-8601-M

Manufacturer:

Everlight Electronics

File Size:

241.31 KB

Description:

Infrared remote-control receiver.
