CEQ8321 - QSOP Dual-Channel Digital Isolators

Everlight

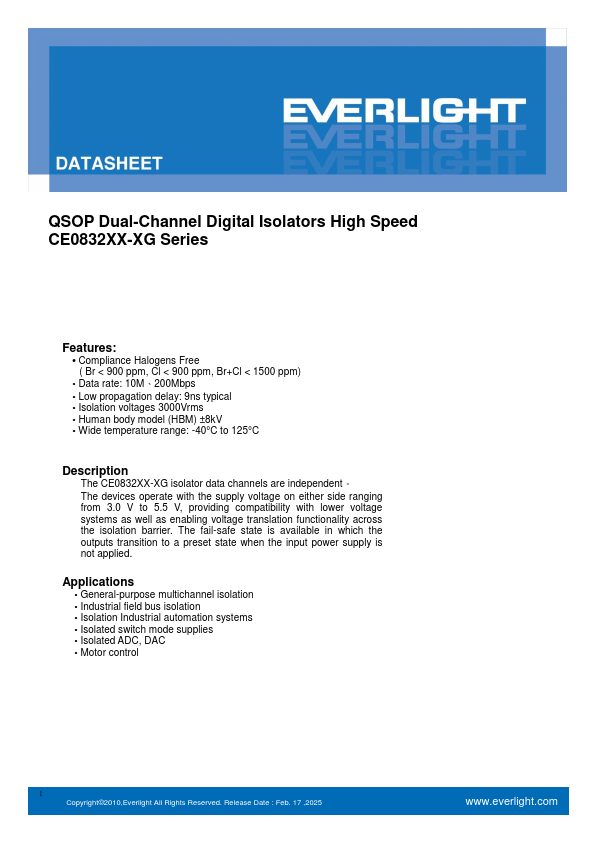

CEQ8321 Datasheet Preview — Preview of CEQ8321 PDF

Datasheet Details

Part number	CEQ8321
Manufacturer	Everlight
File Size	463.40 KB
Description	QSOP Dual-Channel Digital Isolators
Datasheet	CEQ8321-Everlight.pdf

CEQ8321 Product details

Description

The CE0832XX-XG isolator data channels are independent。 The devices operate with the supply voltage on either side ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier. General-purpose multichannel isolation Industrial field bus i

Features

Compliance Halogens Free ( Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm).
Data rate: 10M、200Mbps.
Low propagation delay: 9ns typical.
Isolation voltages 3000Vrms.
Human body model (HBM) ±8kV.
Wide temperature range: -40°C to 125°C.
