ELM452, ELM45X, TRANSISTOR PHOTOCOUPLER

5 PIN SOP HIGH SPEED 1Mbit/s TRANSISTOR PHOTOCOUPLER .

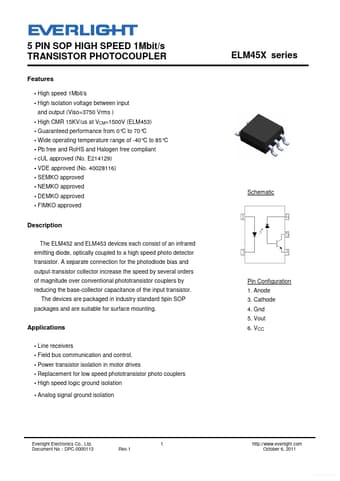

The ELM452 and ELM453 devices each consist of an infrared emitting diode, optically coupled to a high speed photo detector transistor.

ELM45X_Everlight.pdf

ELM452 Datasheet Preview — This datasheet PDF includes multiple part numbers: ELM452, ELM45X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ELM452, ELM45X

Manufacturer:

Everlight

File Size:

585.59 KB

Description:

TRANSISTOR PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: ELM452, ELM45X.
Please refer to the document for exact specifications by model.

Features

* High speed 1Mbit/s
* High isolation voltage between input and output (Viso=3750 Vrms )
* High CMR 15KV/us at VCM=1500V (ELM453)
* Guaranteed performance from 0° C to 70° C
* Wide operating temperature range of -40° C to 85° C
* Pb free and RoHS and H

Applications

* Line receivers
* Field bus communication and control.
* Power transistor isolation in motor drives
* Replacement for low speed phototransistor photo couplers
* High speed logic ground isolation
* Analog signal ground isolation Everlight Electronics
