GT-197 - Chip LED

Everlight

The GT-197 by Everlight is a Chip LED. Below is the official datasheet preview.

📥 Download Datasheet

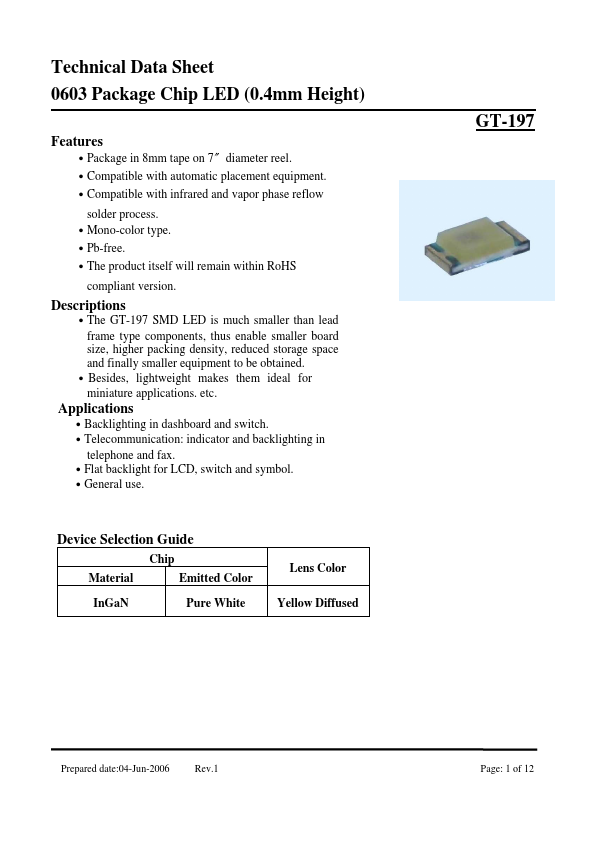

GT-197 Chip LED by Everlight - Datasheet Preview — Official preview page of the **GT-197** Chip LED datasheet (Everlight).

Datasheet Details

Part number	GT-197
Manufacturer	Everlight
File Size	153.71 KB
Description	Chip LED
Datasheet	GT-197-Everlight.pdf

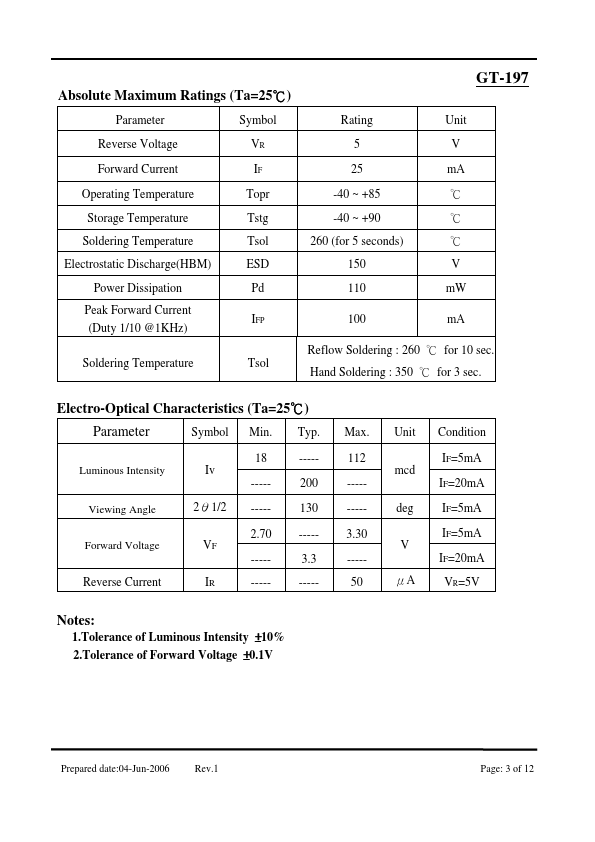

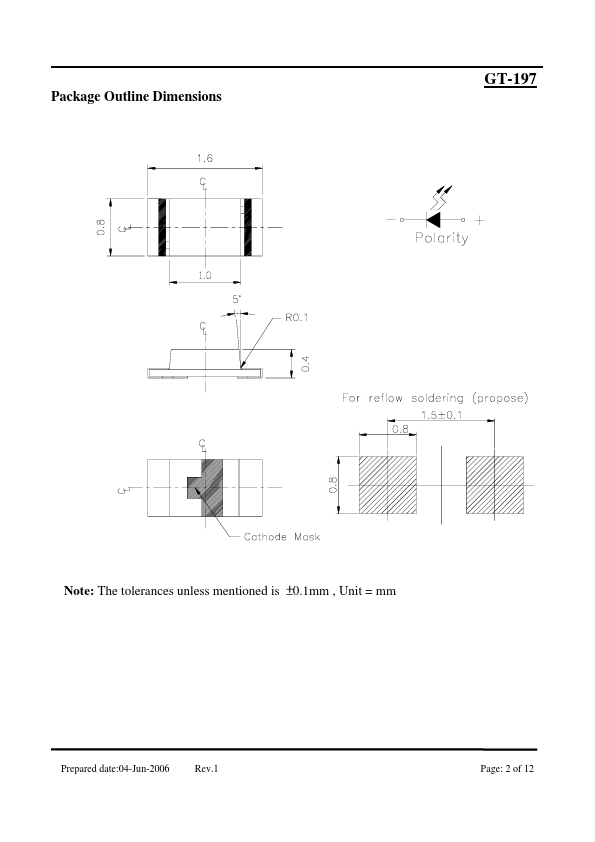

Additional preview pages of the GT-197 datasheet.

GT-197 Product details

Description

․The GT-197 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

Features

․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS compliant version.
