IRM-3638N3

Infrared Remote-control Receiver

IRM-3638N3 Features

* ‧High protection ability against EMI . ‧Circular lens to improve the receive characteristic. ‧Line-up for various center carrier frequencies. ‧Low voltage and low power consumption. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS compatibility. ‧Long receptio

IRM-3638N3 General Description

The device is a miniature type infrared remote control system receiver which has been developed and designed by utilizing the most updated IC technology. The PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as an IR filter. The demodulated output signal can dire.

IRM-3638N3 Datasheet (286.51 KB)

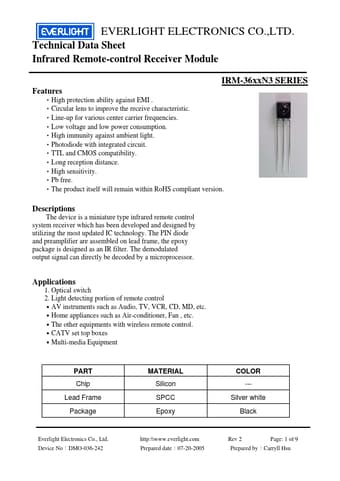

Preview of IRM-3638N3 PDF

Datasheet Details

Part number:

IRM-3638N3

Manufacturer:

Everlight

File Size:

286.51 KB

Description:

Infrared remote-control receiver.
