ITR1201SR10AR-TR Datasheet, Photo-transistor, Everlight

ITR1201SR10AR-TR Features

  • Photo-transistor ․Fast response time ․High sensitivity ․Cut-Off visible wavelength ․Thin ․Compact ․Pb free ․This product itself will remain within RoHS compliant version. ․Compliance with EU REACH. ․Com

PDF File Details

Part number:

ITR1201SR10AR-TR

Manufacturer:

Everlight

File Size:

793.29kb

Download:

📄 Datasheet

Description:

Gaas ir-led and a npn photo-transistor. ITR1201SR10AR/TR is a light reflection switch which includes a GaAs IR-LED and a NPN photo-transistor with a high photosensitive rece

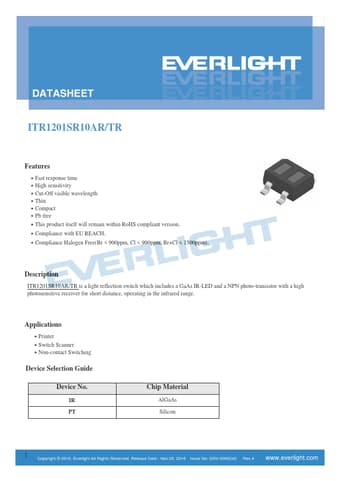

Datasheet Preview: ITR1201SR10AR-TR 📥 Download PDF (793.29kb)
Page 2 of ITR1201SR10AR-TR Page 3 of ITR1201SR10AR-TR

ITR1201SR10AR-TR Application

  • Applications ․Printer ․Switch Scanner ․Non-contact Switching Device Selection Guide Device No. IR PT Chip Material AlGaAs Silicon 1 Copyright © 20
