XR-2207 - Voltage-Controlled Oscillator

XR-2207 Description

XR-2207 the analog plus company TM Voltage-Controlled Oscillator June 1997 *3 .
The XR-2207 is a monolithic voltage-controlled oscillator (VCO) integrated circuit featuring excellent frequency stability and a wide tuning range.

XR-2207 Features

* D Excellent Temperature Stability (20ppm/°C) D Linear Frequency Sweep D Adjustable Duty Cycle (0.1% to 99.9%) D Two or Four Level FSK Capability D Wide Sweep Range (1000:1 Minimum) D Logic Compatible Input and Output Levels D Wide Supply Voltage Range ($4V to $13V) D Low Supply Sensitivity (0.1% /V)

XR-2207 Applications

* ORDERING INFORMATION Part No. XR-2207M XR-2207CP XR-2207D XR-2207ID APPLICATIONS D FSK Generation D Voltage and Current-to-Frequency Conversion D Stable Phase-Locked Loop D Waveform Generation
* Triangle, Sawtooth, Pulse, Squarewave D FM and Sweep Generation The XR-2207 has a typical drif

📥 Download Datasheet

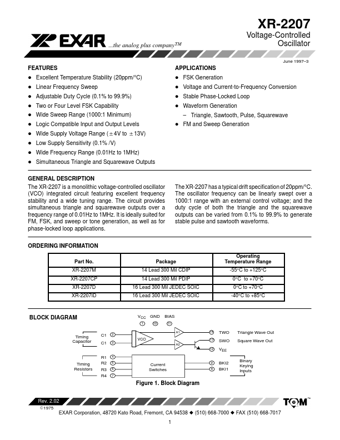

Preview of XR-2207 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XR-2207
Manufacturer
Exar Corporation
File Size
248.87 KB
Datasheet
XR-2207_ExarCorporation.pdf
Description
Voltage-Controlled Oscillator
