XRT5683A Datasheet - Exar Corporation

XRT5683A PCM Line Interface Chip

The XR-T5683A is a PCM line interface chip consisting of both transmit and receive circuitry. This device is offered in a plastic dual in-line (PDIP) or in a surface mount package (SOIC). The maximum bit rate of the chip is 8.448Mbps, and the signal level to the receiver can be ORDERING INFORMATION .

XRT5683A Features

* D Single 5V Supply D Receiver Input Can Be Either Balanced or Unbalanced D Up To 8.448Mbps Operation In Both Tx and Rx Directions D TTL Compatible Interface D Device Can Be Used as a Line Interface Unit Without Clock Recovery APPLICATIONS D T1, T2, E1 & E2 Rates, PCM Line Interface D Network Multip

XRT5683A_ExarCorporation.pdf

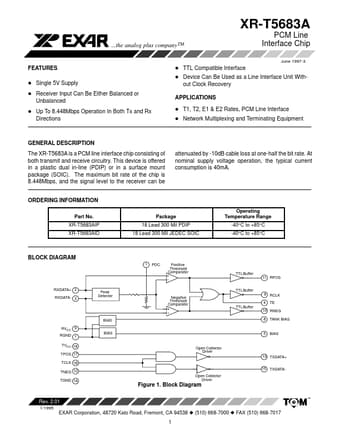

Preview of XRT5683A PDF
XRT5683A Datasheet Preview Page 2 XRT5683A Datasheet Preview Page 3

Datasheet Details

Part number:

XRT5683A

Manufacturer:

Exar Corporation

File Size:

110.17 KB

Description:

Pcm line interface chip.
