XRT7295AT

DS3/Sonet STS-1 Integrated Line Receiver

XRT7295AT Features

* D Fully Integrated Receive Interface for DS3 and STS-1 Rate Signals D Integrated Equalization (Optional) and Timing Recovery D Loss-of-Signal and Loss-of-Lock Alarms D Variable Input Sensitivity Control D 5V Power Supply D Pin Compatible with XRT7295AE and XRT7295AC D Companion Device to T7296 Trans

XRT7295AT General Description

The XRT7295AT DS3/SONET STS-1 integrated line receiver is a fully integrated receive interface that terminates a bipolar DS3 (44.736Mbps) or Sonet STS-1 (51.84Mbps) signal transmitted over coaxial cable. (See Figure 13). The device also provides the functions of receive equalization (optional), auto.

XRT7295AT Datasheet (1.03 MB)

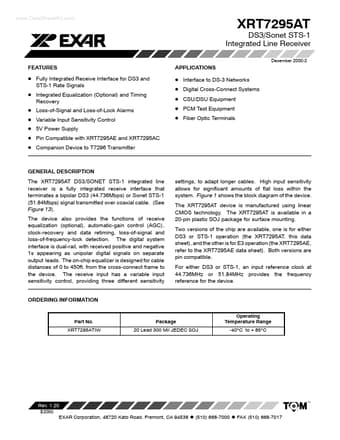

Preview of XRT7295AT PDF

Datasheet Details

Part number:

XRT7295AT

Manufacturer:

Exar Corporation

File Size:

1.03 MB

Description:

Ds3/sonet sts-1 integrated line receiver.
