CLC4000 - High Output Current Dual and Quad Amplifiers

Download the CLC4000 datasheet PDF. This datasheet also covers the CLC2000 variant, as both devices belong to the same high output current dual and quad amplifiers family and are provided as variant models within a single manufacturer datasheet.

Description

The Comlinear CLC2000 and CLC4000 are dual and quad voltage feedback amplifiers that offer ±200mA of output current at 9.4Vpp.

The CLC2000 and CLC4000 are capable of driving signals to within 1V of the power rails.

Features

  • n 9.4Vpp output drive into RL= 25Ω n Using both amplifiers, 18.8Vpp differential output drive into RL= 25Ω n ±200mA @ Vo = 9.4Vpp n 0.009%/0.06˚ differential gain/ phase error n 250MHz -3dB bandwidth at G = 2 n 510MHz -3dB bandwidth at G = 1 n 210V/μs slew rate n 4.5nV/√Hz input voltage noise n 2.7pA/√Hz input current noise n 7mA supply current n Fully specified at 5V and 12V supplies General.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CLC2000-Exar.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CLC400 Fast Settling/ Wideband Low-Gain Monolithic Op Amp National Semiconductor
CLC40 Fllstandssensoren Schaltverstarker Baureihe CLC ETC
CLC40-L05 Fllstandssensoren Schaltverstarker Baureihe CLC ETC
CLC40-L15 Fllstandssensoren Schaltverstarker Baureihe CLC ETC
CLC40-L50 Fllstandssensoren Schaltverstarker Baureihe CLC ETC

Other Datasheets by Exar (now MaxLinear)

Part Number Description
CLC4007 High Speed RRO Amplifiers
CLC4011 Rail-to-Rail I/O Amplifiers
CLC4601 550MHz Amplifiers
CLC1005 Rail-to-Rail Amplifiers
CLC1007 High Speed RRO Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

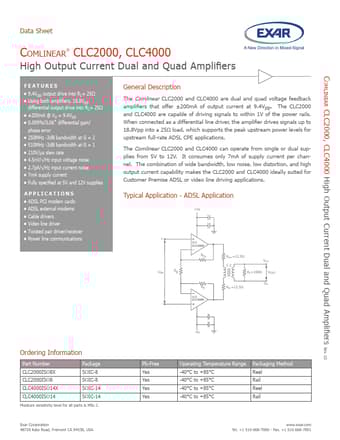

Comlinear CLC2000, CLC4000 High Output Current Dual and Quad Amplifiers Rev 1D Data Sheet Comlinear® CLC2000, CLC4000 High Output Current Dual and Quad Amplifiers FEATURES n 9.4Vpp output drive into RL= 25Ω n Using both amplifiers, 18.8Vpp differential output drive into RL= 25Ω n ±200mA @ Vo = 9.4Vpp n 0.009%/0.06˚ differential gain/ phase error n 250MHz -3dB bandwidth at G = 2 n 510MHz -3dB bandwidth at G = 1 n 210V/μs slew rate n 4.5nV/√Hz input voltage noise n 2.7pA/√Hz input current noise n 7mA supply current n Fully specified at 5V and 12V supplies General Description The Comlinear CLC2000 and CLC4000 are dual and quad voltage feedback amplifiers that offer ±200mA of output current at 9.4Vpp.
