SP312E

High Performance RS-232 Line Drivers/Receivers

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor MaxLinear Inc SP312EET-L IC TRANSCEIVER FULL 2/2 18SOIC DigiKey 0 0
$0

SP312E Datasheet (899.04 KB)

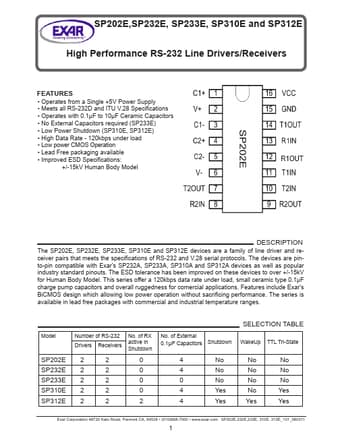

Preview of SP312E PDF

Datasheet Details

Part number:

SP312E

Manufacturer:

Exar

File Size:

899.04 KB

Description:

High performance rs-232 line drivers/receivers.

SP312E Features

* Operates from a Single +5V Power Supply

* Meets all RS-232D and ITU V.28 Specifications

* Operates with 0.1μF to 10μF Ceramic Capacitors

* No External Capacitors required (SP233E)

* Low Power Shutdown (SP310E, SP312E)

* High Data Rate - 120kbps under

SP312E General Description

The SP202E, SP232E, SP233E, SP310E and SP312E devices are a family of line driver and receiver pairs that meets the specifications of RS-232 and V.28 serial protocols. The devices are pinto-pin compatible with Exar's SP232A, SP233A, SP310A and SP312A devices as well as popular industry standard pino.
