SPX29300

The SPX29300 is 3A Low Drropoutt Vollttage Regullattor designed by Exar.

Product Overview

Exar

📥 Download Datasheet

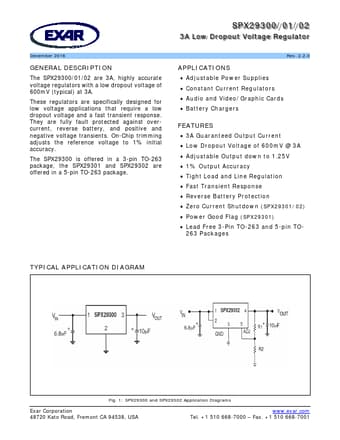

SPX29300 3A Low Drropoutt Vollttage Regullattor by Exar - Datasheet Preview — Datasheet preview – SPX29300

Datasheet Details

Part number	SPX29300
Manufacturer	Exar
File Size	639.93 KB
Description	3A Low Drropoutt Vollttage Regullattor
Datasheet	SPX29300-Exar.pdf
Additional preview pages of the SPX29300 datasheet.

Product details

Description

The SPX29300/01/02 are 3A, highly accurate voltage regulators with a low dropout voltage of 600mV (typical) at 3A.

Features

3A Guaranteed Output Current.
Low Dropout Voltage of 600mV @ 3A.
Adjustable Output down to 1.25V.
1% Output Accuracy.
Tight Load and Line Regulation.
Fast Transient Response.
Reverse Battery Protection.
Zero Current Shutdown (SPX29301/02).
Power Good Flag (SPX29301).
Lead Free 3-Pin TO-263, 5-pin TO-220 and TO-263 Packages.
