XR-5533A Datasheet, Amplifier, Exar

XR-5533A Features

  • Amplifier Direct Replacement for Signetics SEINE 5533 Wide Small-Signal Bandwidth: 10 MHz High-Current Drive Capability (10V rms into 6000 at Vs = ± 18V) High Slew Rate: 13 V/p.s Wide Power-Band

PDF File Details

Part number:

XR-5533A

Manufacturer:

Exar

File Size:

149.41kb

Download:

📄 Datasheet

Description:

Dual low-noise operational amplifier. The XR-5533 dual low-noise operational amplifier is especially designed for applications in high quality professional audio equipmen

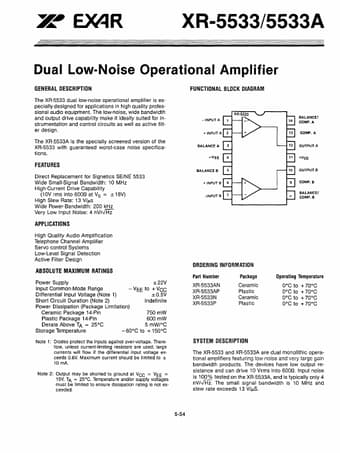

Datasheet Preview: XR-5533A 📥 Download PDF (149.41kb)
Page 2 of XR-5533A Page 3 of XR-5533A

XR-5533A Application

  • Applications in high quality professional audio equipment. The low-noise, wide bandwidth and output drive capability make it ideally suited for inst
