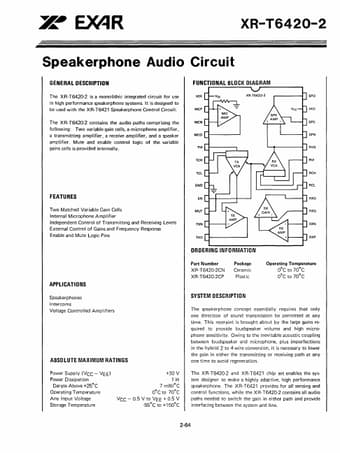

XR-T6420-2 Datasheet, circuit equivalent, Exar

XR-T6420-2 Features

• Circuit Two Matched Variable Gain Cells Internal Microphone Amplifier Independent Control of Transmitting and Receiving Levels External Control of Gains and Frequency Response Enable and Mute L

PDF File Details

Part number:

XR-T6420-2

Manufacturer:

Exar

File Size:

144.43kb

Download:

📄 Datasheet

Description:

Speakerphone audio circuit. The XR-T6420-2 is a monolithic integrated circuit for use in high performance speakerphone systems. It is designed to be used with th

XR-T6420-2 Application

• Applications Speakerphones Intercoms Voltage Controlled Amplifiers ABSOLUTE MAXIMUM RATINGS Power Supply (VCC - VEE) Power Dissipation Derate Abov
