XR22417 - USB 2.0 7-Port Hub

General Description

The XR22417 is a USB 2.0 7-port hub using Multiple Transaction Translators (MTT) for highest possible bandwidth capability.

The upstream USB interface has an integrated USB 2.0 PHY and device controller that is compliant with both hi-speed (480 Mbps) and full-speed (12 Mbps).

Key Features

  • USB 2.0 compliant interface.
  • Multiple transaction translators (MTT).
  • Regulated +3.3V output power.
  • Individual port and hub activity LED indicators.
  • Individual power enables (LQFP-64).
  • Individual overcurrent sensing (LQFP-64).
  • Single 5V power input.
  • Single 12 MHz Crystal.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Exar (now MaxLinear)

Part Number Description
XR22414 USB 2.0 4-Port MTT Hub
XR2240 Programmable Timer / Counter
XR22404 USB 2.0 4-Port Hub
XR2242 Long Ranhe Timer
XR2242 Long Rang Timer
XR2243 Micropower Long Rang Timer
XR2201 High Voltage High Current Darlington Transistor Arrays
XR2202 High Voltage High Current Darlington Transistor Arrays
XR2203 High Voltage High Current Darlington Transistor Arrays
XR2204 High Voltage High Current Darlington Transistor Arrays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

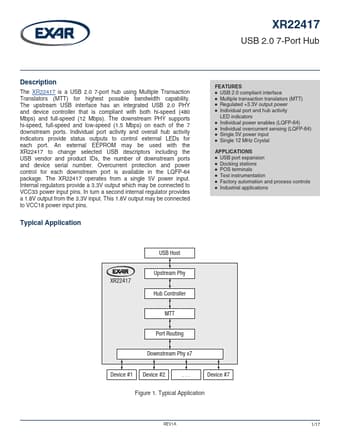

XR22417 USB 2.0 7-Port Hub Description The XR22417 is a USB 2.0 7-port hub using Multiple Transaction Translators (MTT) for highest possible bandwidth capability. The upstream USB interface has an integrated USB 2.0 PHY and device controller that is compliant with both hi-speed (480 Mbps) and full-speed (12 Mbps). The downstream PHY supports hi-speed, full-speed and low-speed (1.5 Mbps) on each of the 7 downstream ports. Individual port activity and overall hub activity indicators provide status outputs to control external LEDs for each port. An external EEPROM may be used with the XR22417 to change selected USB descriptors including the USB vendor and product IDs, the number of downstream ports and device serial number.
