1N4700

Zener diode

1N4700 Features

* 1. High reliability 2. Very sharp reverse characteristic 3. Zener voltage 1.8V to 43V 4. VZ-tolerance±5% Applications Voltage stabilization Absolute Maximum Ratings Tj=25℃ Parameter Power dissipation Z-current Junction temperature Storage temperature range Test Conditions Tamb≤75℃ Type Sy

1N4700 Datasheet (526.75 KB)

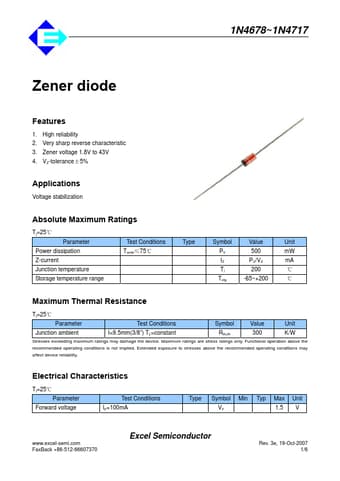

Preview of 1N4700 PDF

Datasheet Details

Part number:

1N4700

Manufacturer:

Excel Semiconductor

File Size:

526.75 KB

Description:

Zener diode.
