ES29LV320E Datasheet - Excel Semiconductor

ES29LV320E - Boot Sector Flash Memory

www.DataSheet4U.com The ES29LV320 is a 32 megabit, 3.0 volt-only flash memory device, organized as 4M x 8 bits (Byte mode) or 2M x 16 bits (Word mode) which is configurable by BYTE#.

Eight boot sectors and sixty three main sectors with uniform size are provided : 8Kbytes x 8 and 64Kbytes x 63.

The

ES29LV320E Features

* Single power supply operation - 2.7V ~ 3.6V for read, program and erase operations

* Minimum 100,000 program/erase cycles per sector

* 20 Year data retention at 125oC SOFTWARE FEATURES

* Sector Structure - 8Kbyte x 8 boot sectors - 64Kbyte x 63 sectors - 256byte s

ES29LV320E_ExcelSemiconductor.pdf

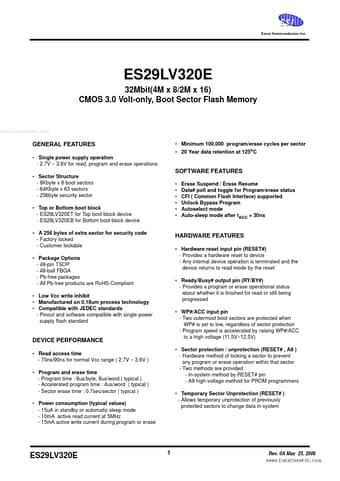

Preview of ES29LV320E PDF
ES29LV320E Datasheet Preview Page 2 ES29LV320E Datasheet Preview Page 3

Datasheet Details

Part number:

ES29LV320E

Manufacturer:

Excel Semiconductor

File Size:

826.46 KB

Description:

Boot sector flash memory.
