Part number:
ZMM55B10
Manufacturer:
Excel Semiconductor
File Size:
595.36 KB
Description:
Zener diode.

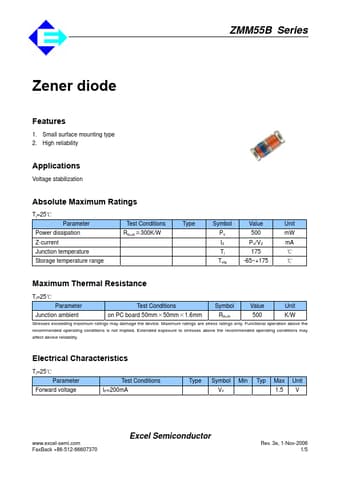

ZMM55B10 Datasheet (595.36 KB)
* 1. Small surface mounting type 2. High reliability Applications Voltage stabilization Absolute Maximum Ratings Tj=25℃ Parameter Power dissipation Z-current Junction temperature Storage temperature range Test Conditions RthJA≦300K/W Type Symbol PV IZ Tj Tstg Value 500 PV/VZ 175 -65~+175 Unit
ZMM55B10 Datasheet (595.36 KB)
ZMM55B10
Excel Semiconductor
595.36 KB
Zener diode.
