ZMM55B56, ZMM55B2V4, Zener diode

ZMM55B Series Zener diode .

ZMM55B2V4-ExcelSemiconductor.pdf

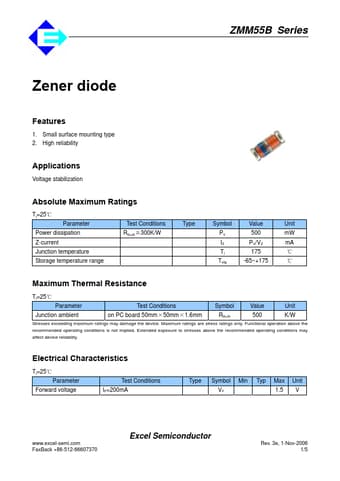

ZMM55B56 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZMM55B56, ZMM55B2V4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ZMM55B56, ZMM55B2V4

Manufacturer:

Excel Semiconductor

File Size:

595.36 KB

Description:

Zener diode

Note:

This datasheet PDF includes multiple part numbers: ZMM55B56, ZMM55B2V4.
Please refer to the document for exact specifications by model.

Applications

* Voltage stabilization Absolute Maximum Ratings Tj=25℃ Parameter Power dissipation Z-current Junction temperature Storage temperature range Test Conditions RthJA≦300K/W Type Symbol PV IZ Tj Tstg Value 500 PV/VZ 175 -65~+175 Unit mW mA ℃ ℃ Maximum Thermal Resistance Tj=25℃ Parameter Test Co
