Datasheet Details
- Part number
- EIB1818-2P
- Manufacturer
- Excelics Semiconductor
- File Size
- 49.17 KB
- Datasheet
- EIB1818-2P_ExcelicsSemiconductor.pdf
- Description
- Internally Matched Power FET

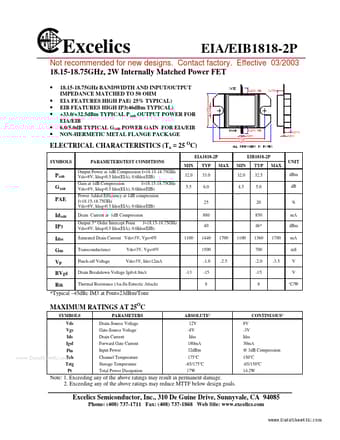

EIB1818-2P Description
Excelics * * * * * * 18.15-18.75GHz BANDWIDTH AND INPUT/OUTPUT IMPEDANCE MATCHED TO 50 OHM EIA .EIB1818-2P Features
* HIGH PAE( 25% TYPICAL) EIB FEATURES HIGH IP3(46dBm TYPICAL) +33.0/+32.5dBm TYPICAL P1dB OUTPUT POWER FOR EIA/EIB 6.0/5.0dB TYPICAL G1dB POWER GAIN FOR EIA/EIB NON-HERMETIC METAL FLANGE PACKAGE EIA/EIB1818-2P Not recommended for new designs. Contact factory. Effective 03/2003 18.15-18.75GHz, 2W Int
