CR10

Ceramic Chip SMD

CR10 Features

* Solid state ceramic chip Surface mounting device High thermal conductivity Superior light uniformity End - to - end and side - to - side stackable down to a pitch of 1.3 mm Solder pads conform with Mil-Std 883 B Ideal for data transmission www.excelitas.com Maximum Ratings at 25° C Power dissipat

CR10 General Description

The solder pads provide an excellent heat sink. For multi-chip arrays just choose 2 or more CERLEDs and mount them side by side or even antiparallel. Small true chip - LED to build custom configurations. Available on special order in 8 mm blister tape or solid strips of up to 12 pcs with a true pitc.

CR10 Datasheet (294.27 KB)

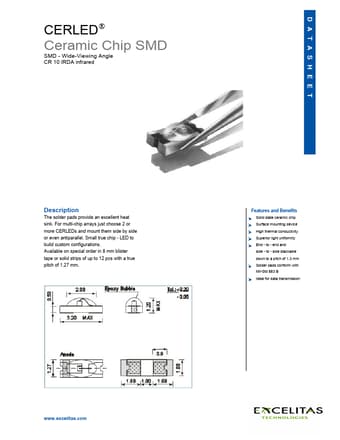

Preview of CR10 PDF

Datasheet Details

Part number:

CR10

Manufacturer:

Excelitas

File Size:

294.27 KB

Description:

Ceramic chip smd.
