Datasheet Details
Part number:
VT935G, VT900
Manufacturer:
Excelitas
File Size:
44.73 KB
Description:
Photoconductive cell.
Note:
This datasheet PDF includes multiple part numbers: VT935G, VT900.
Please refer to the document for exact specifications by model.

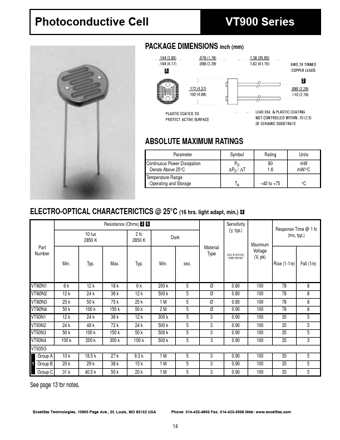

VT935G, VT900, Photoconductive Cell
Photoconductive Cell VT900 Series PACKAGE DIMENSIONS inch (mm) 5 2 ABSOLUTE MAXIMUM RATINGS Parameter Continuous Power Dissipation Derate Above 25°C Temperature Range Operating and Storage Symbol PD ∆PD / ∆T TA Rating 80 1.6 40 to +75 Units mW mW/°C °C ELECTRO-OPTICAL CHARACTERICTICS @ 25°C (16 hrs.
light adapt, min.) 4 Part Number Min.
Resistance (Ohms) 3 6 10 lux 2850 K 2 fc 2850 K Dark Typ.
Max.
Typ.
Min.
sec.
Material Type Sensitivity (γ, typ.) Response Time @ 1 f
