B20N03 - N-Channel MOSFET

📥 Download Datasheet

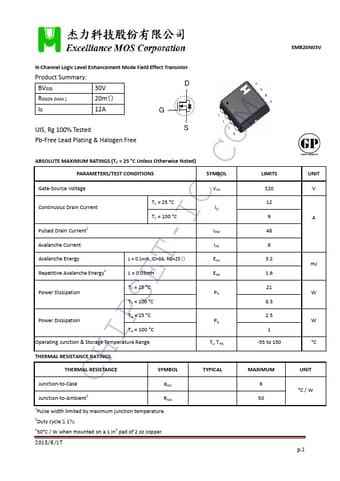

Datasheet preview – B20N03

Datasheet Details

Part number B20N03
Manufacturer Excelliance MOS
File Size 215.48 KB
Description N-Channel MOSFET
Datasheet download datasheet B20N03 Datasheet
Additional preview pages of the B20N03 datasheet.

📁 Similar Datasheet

  • B20NK50Z - N-Channel MOSFET (STMicroelectronics)
  • B20NM50FD - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • B20NM60 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • B20NM60D - N-Channel 650V Power MOSFET (VBsemi)
  • B2000T - SMD Power Cross Protection Fuse (BOURNS)
  • B2006 - Tube (Philips)
  • B200NF03 - N-channel MOSFET (STMicroelectronics)
  • B20100G - Schottky Power Rectifier (ON Semiconductor)
  • B201SW01-V0 - Color TFT-LCD (AUO)
  • B2020W - SCHOTTKY BARRIER DIODE (JCET)
Other Datasheets by Excelliance MOS

    Full PDF Text Transcription

    Click to expand full text
    CHIPSET-IC.COM N‐Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: BVDSS 30V D RDSON (MAX.) 20mΩ ID 12A G UIS, Rg 100% Tested S Pb‐Free Lead Plating & Halogen Free ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate‐Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy Repetitive Avalanche Energy2 L = 0.1mH, ID=8A, RG=25Ω L = 0.
